GN21 Levelling Foot, Stainless Steel, Turned Foot Plate

CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

Type D0 - fine turned, without rubber underlay.

Type D1 - fine turned, with rubber underlay, inlaid, black.



Version S - without locknut, external hexagon below.

Version SK - with locknut, external hexagon below.

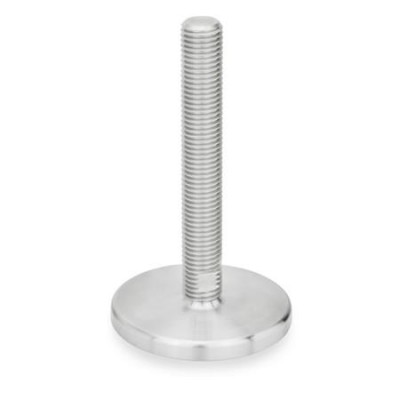

Version T - without locknut, flat width below.

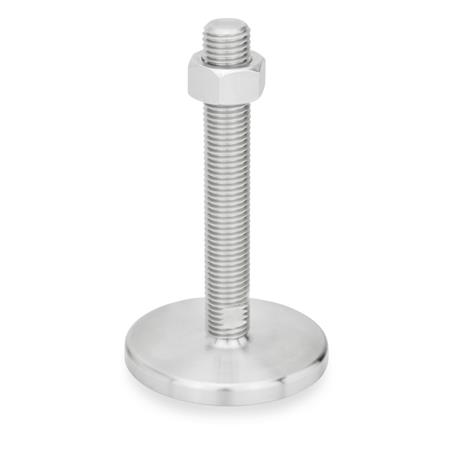

Version TK - with locknut, flat width below.

Version U - without locknut, flat width below, internal hexagon above.

Version UK - with locknut, flat width below, internal hexagon above.

Version V - without locknut, flat width below, external hexagon above.

Version VK - with locknut, flat width below, external hexagon above.

Version W - with adjustable sleeve.

Version X - with female thread.

CAD Viewer Technical Data

Product description

GN21 Levelling Foot, Stainless Steel, Turned Foot Plate.

This stainless steel levelling foot is ideal for use in cleanrooms, such as found in the food, medical and pharmaceutical industries and their associated processing and packaging. The levelling foot has a turned base plate, and is available with or without a rubber underlay.

Levelling feet on machinery or equipment provide an ideal solution to vibration, wear and noise problems. They are used to provide a stable, firm base and prevent tipping and movement of machinery during use.

These levelling feet will be delivered mounted and are not removable.

Specification

Foot plate - Stainless Steel AISI 304

Screws - Stainless Steel AISI 303

Hexagon nut ISO 4032 - Stainless Steel AISI 304

Rubber inlay - inlaid Perbunan (NBR), 70 Shore A
