GN2277 Bull's Eye Level, with Mounting Flange

images/450/GN2277_Bull_s_Eye_Level__with_Mounting_Flange._W.gif

Sensitivity - 30 Angle minutes, bubble moves by 2mm.

Type - A Mounting flange for bolting to surface.

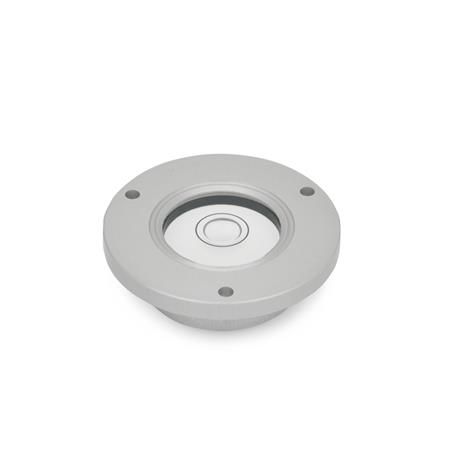

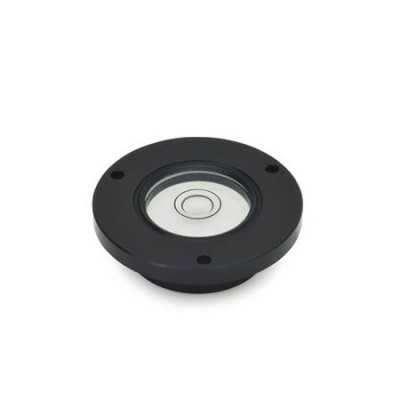

Type - B Mounting flange for inserting (collar).



Select Values to Buy:

Tech Spec:



GN2277 Bull's Eye Level, with Mounting Flange.

Bulls eye levels are used to check the horizontal position of jigs, machines, devices, appliances and instruments.

The spirit levels are aligned in relation to the reference surface so that the bubble is located inside the marking ring when the horizontal position of the contact surface is achieved. They have a flange for easy mounting.

Specification

Housing - Aluminium, anodized natural colour ALN. Anodized black, ALS.

Air level element - Glass, plastic body.

Filling - colourless K.

Casting compound - mineral based.

RoHS compliant



Select / Deselect Visible Columns
PartCodeFinishd1FillingSensitivityTyped2d3d4d5h1h2Mass

GN2277-ALN-20-K-30-AALN20K30A1014171.8101.80.003
GN2277-ALN-20-K-30-BALN20K30B1014171.8101.80.003
GN2277-ALS-20-K-30-AALS20K30A1014171.8101.80.003
GN2277-ALS-20-K-30-BALS20K30B1014171.8101.80.003
GN2277-ALN-25-K-30-AALN25K30A1217212.21020.005
GN2277-ALN-25-K-30-BALN25K30B1217212.21020.005
GN2277-ALS-25-K-30-AALS25K30A1217212.21020.005
GN2277-ALS-25-K-30-BALS25K30B1217212.21020.005
GN2277-ALN-30-K-30-AALN30K30A1218243.21130.007
GN2277-ALN-30-K-30-BALN30K30B1218243.21130.007
GN2277-ALS-30-K-30-AALS30K30A1218243.21130.007
GN2277-ALS-30-K-30-BALS30K30B1218243.21130.007
GN2277-ALN-40-K-30-AALN40K30A202834.53.21440.014
GN2277-ALN-40-K-30-BALN40K30B202834.53.21440.014
GN2277-ALS-40-K-30-AALS40K30A202834.53.21440.014
GN2277-ALS-40-K-30-BALS40K30B202834.53.21440.014
GN2277-ALN-50-K-30-AALN50K30A2534433.21550.025
GN2277-ALN-50-K-30-BALN50K30B2534433.21550.025
GN2277-ALS-50-K-30-AALS50K30A2534433.21550.025
GN2277-ALS-50-K-30-BALS50K30B2534433.21550.025
#53394.79~53397.24#



On Request:

Filling - green, transparent.

Other sensitivities.

Housing in brass or stainless steel.
