GN22870 Light Duty Castors, Wheel Tread Rubber, Wheel Core Polypropylene, Double Wheel Version
CloseNextPreviousGN22870 Light Duty Castors, Double Wheel

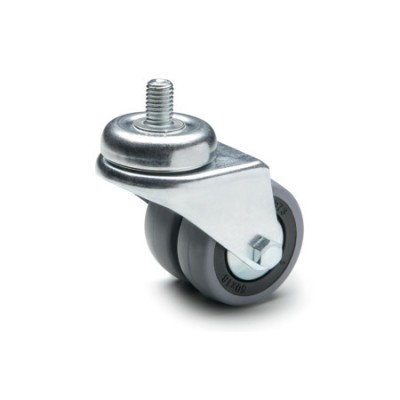

Bearing Type G Bracket Type G Code D
CloseNextPreviousGN22870 Light Duty Castors, Double Wheel

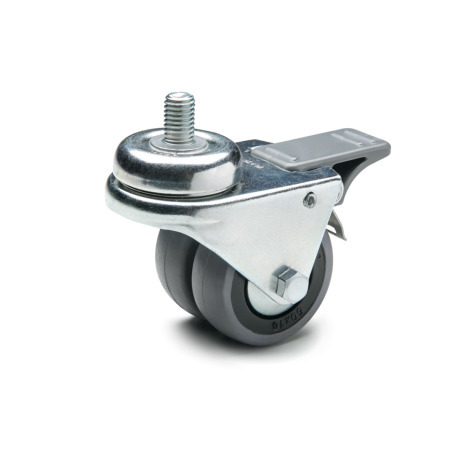

Bearing Type G Bracket Type GF Code D
CloseNextPreviousGN22870 Light Duty Castors, Double Wheel

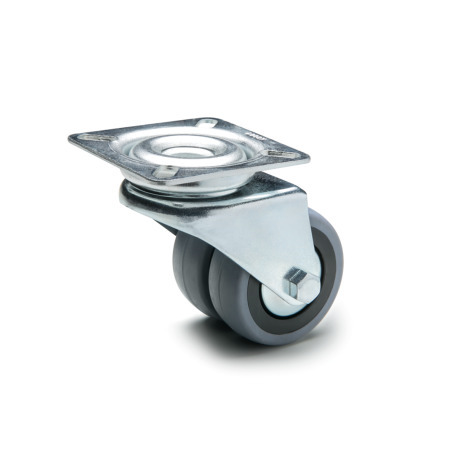

Bearing Type G Bracket Type L Code D
CloseNextPreviousGN22870 Light Duty Castors, Double Wheel

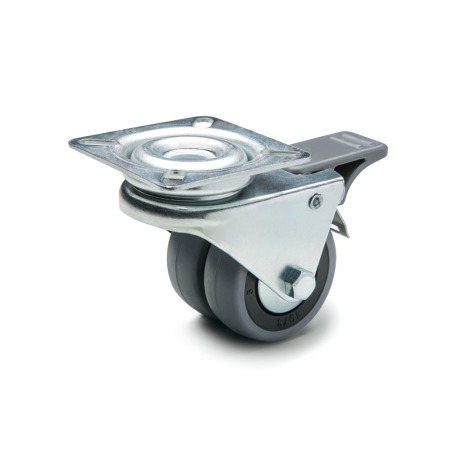

Bearing Type G Bracket Type LF Code D
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Bearing Type G - Friction bearing
Bracket Type L - Swivel bracket with mounting plate
Bracket Type LF - Swivel bracket with mounting plate, with total lock brake
Bracket Type G - Swivel bracket with threaded stud
Bracket Type GF - Swivel bracket with threaded stud, with total brake lock
Coding D - Double wheel version
Product Description
GN22870 Light Duty Castors, Wheel Tread Rubber, Wheel Core Polypropylene, Double Wheel Version
Light duty casters GN 22870 are used in industrial and public areas for moving heavier materials and equipment, for example.
The wheel tread offers low rolling resistance and high elasticity. It is gentle on floors and good at overcoming obstacles. The double wheel design reduces the contact pressure and thus protects the running surface.
The integrated thread guard prevents textile threads from wrapping around the wheel axle and protects the bearing from soiling.
Specification
- Wheel tread - natural rubber (NR)
- Grey, abrasion resistant, hardness 80 Shore A
- Wheel core - plastic, polypropylene (PP)
- Thread guard - steel
- Bracket - steel sheet metal, zinc plated, ST
- Swivel head turning bracket - duel grease lubricated ball bearing
- Operating temperature -5º C to +40º C
