GN22870 Light Duty Castors, Wheel Tread Rubber, Wheel Core Polypropylene, Light Version

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Bearing Type G - Friction bearing

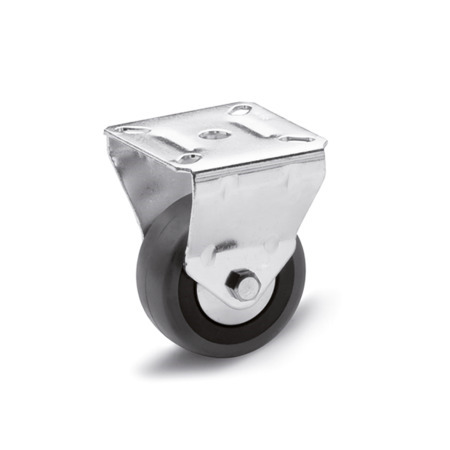

Bracket Type B - Rigid bracket

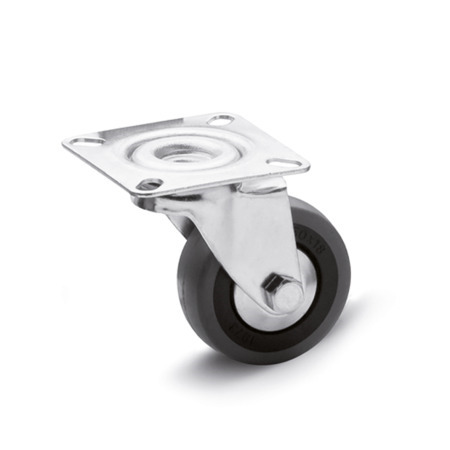

Bracket Type L - Swivel bracket with mounting plate

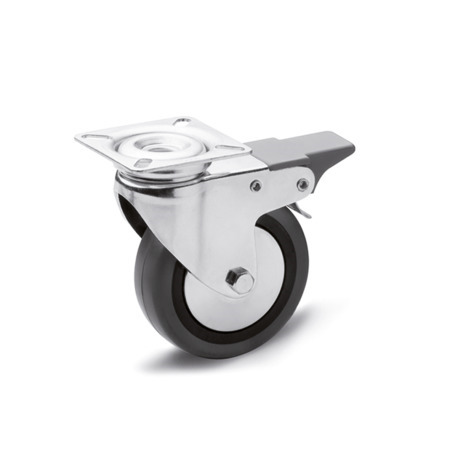

Bracket Type LF - Swivel bracket with mounting plate, with total lock brake

Bracket Type R - Swivel bracket with centre hole

Bracket Type RF - Swivel bracket with centre hole, with total brake lock

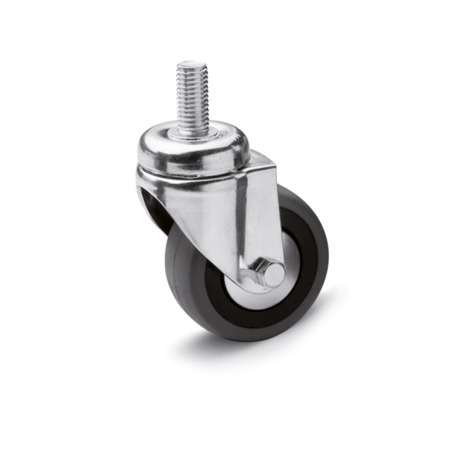

Bracket Type G - Swivel bracket with threaded stud

Bracket Type GF - Swivel bracket with threaded stud, with total brake lock

Coding L - Lght version

Product Description

GN22870 Light Duty Castors, Wheel Tread Rubber, Wheel Core Polypropylene, Light Version

Light duty casters GN 22870 are used in industrial and public indoor areas for moving light materials and equipment.

The wheel tread offers low rolling resistance and high elasticity. It is gentle on floors and good at overcoming obstacles.

The integrated thread guard prevents textile threads from wrapping around the wheel axle and protects the bearing from soiling.

Specification

• Wheel tread - natural rubber (NR)
  • Grey, abrasion resistant, hardness 80 Shore A
• Wheel core - plastic, polypropylene (PP)
• Thread guard - polyamide (PA) for d₁ = 40. Steel of d₁ > 40
• Bracket - steel sheet metal, zinc plated.
• Swivel head turning bracket - duel grease lubricated ball bearing
• Operating temperature -5º C to +40º C
