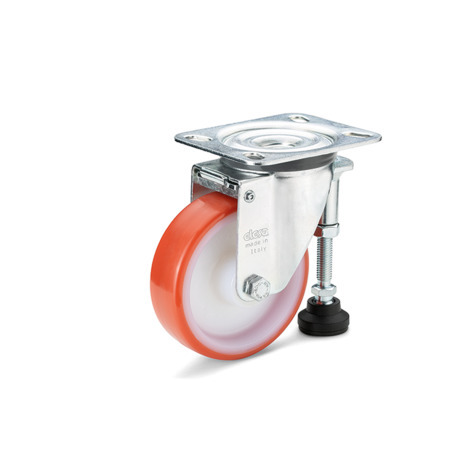

GN22882 Medium Duty Castors, Wheel Tread Polyurethane, Wheel Core Polyamide, Light Version, With Levelling Foot
CloseNextPreviousGN22882 Medium Duty Castors, Polyurethane Wheel, Polyamide Core, with Levelling Foot
Bearing Type G Type S, Code L
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Bearing Type G - Friction bearing
Type S - Swivel bracket with mounting plate, with levelling foot
Code L - Light version
Product Description
GN22882 Medium Duty Castors, Wheel Tread Polyurethane, Wheel Core Polyamide, Light Version, With Levelling Feet
Medium duty casters GN 22882 are used in industrial and public indoor areas for positioning and moving mobile workbenches or equipment, for example.
The wheel tread offers low rolling resistance and high elasticity with as good wear and tear resistance.
The integrated leveling foot can be adjusted in height and ensures stable positioning.
Specification
- Wheel tread - Thermoplastic polyurethane (TPU)
- Injection moulded, orange, hardness 55 Shore D
- Wheel core - Plastic, polyamide (PA)
- Bracket - Steel sheet metal, zinc plated ST.
- Swivel head bracket
- Dual greese lubricated ball bearing
- Dust seal, plastic, polyethylene
- Levelling foot, plastic, polyamide (PA), glassfibre reinforced, black.
- Threaded stud - steel, zinc plated, blue passivated.
- Rubber pad - acrylonitrile butadiene rubber (NBR), hardness 70 Shore A, black.
- Operating temperature -15º C to +80º C
CAD Viewer
Technical Data
