GN22885 Medium Duty Castors, Wheel Tread Polyurethane, Wheel Core Aluminium, Medium Version
CloseNextPreviousGN22885 Medium Duty Castors, Polyurethane Tread, Aluminium Core
Bearing Type K, Type B, Material ST

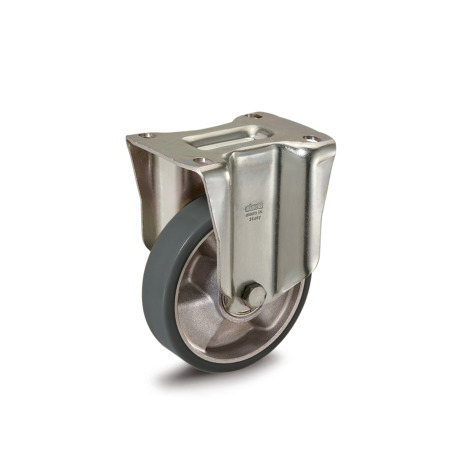

CloseNextPreviousGN22885 Medium Duty Castors, Polyurethane Tread, Aluminium Core
Bearing Type K, Type B, Material STE

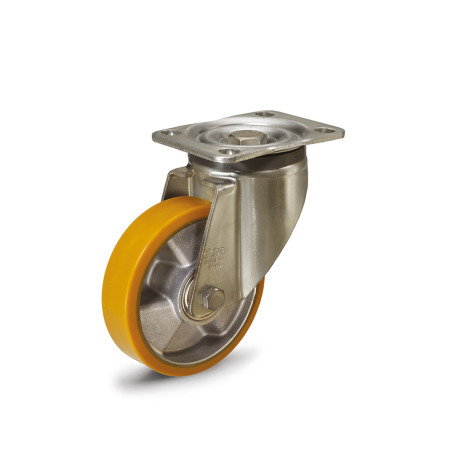

CloseNextPreviousGN22885 Medium Duty Castors, Polyurethane Tread, Aluminium Core
Bearing Type K, Type L, Material ST

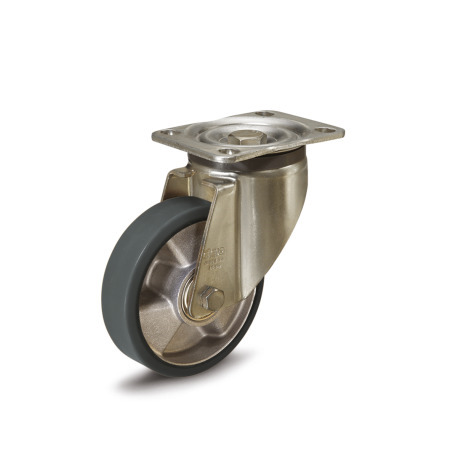

CloseNextPreviousGN22885 Medium Duty Castors, Polyurethane Tread, Aluminium Core
Bearing Type K, Type L, Material STE

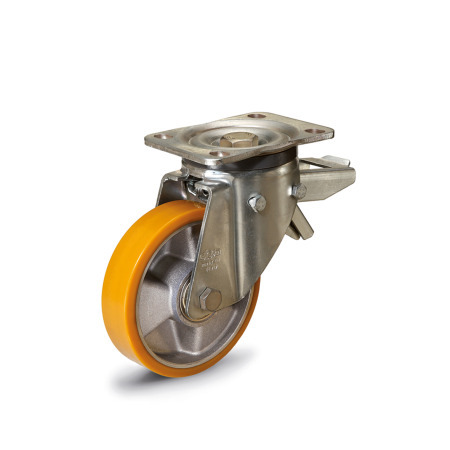

CloseNextPreviousGN22885 Medium Duty Castors, Polyurethane Tread, Aluminium Core
Bearing Type K, Type LF, Material ST

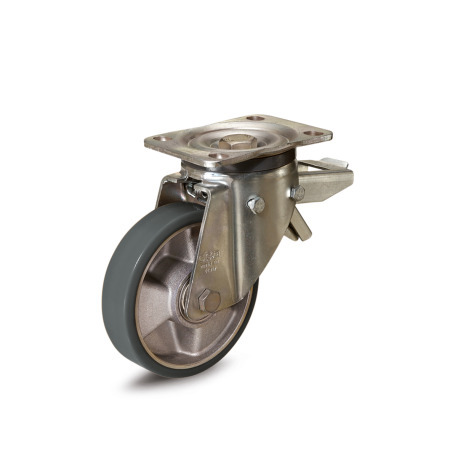

CloseNextPreviousGN22885 Medium Duty Castors, Polyurethane Tread, Aluminium Core
Bearing Type K, Type LF, Material STE
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Bearing Type K - Ball bearing
Type B - Rigid bracket
Type L - Swivel bracket with mounting plate
Type LF - Swivel bracket with mounting plate, with total lock brake
Code M - Medium version
Product Description
GN22885 Medium Duty Castors, Wheel Tread Polyurethane, Wheel Core Aluminium, Medium Version
Medium duty casters GN 22885 are used in industrial and public indoor areas for moving lightweight carts and trolleys, for example.
The wheel tread offers low rolling resistance and high elasticity as well as good wear and tearing resistance.
The ESD version has antistatic properties and therefore meets the requirements of ISO 22878:2004.
The low wear on the ball bearing increases the service life, and the mounting to the inner ring can be accomplished with zero axial backlash.
Specification
- Wheel tread ST - plastic, polyurethane (PUR)
- Cast, yellow, hardness 92 Shore A
- Wheel tread STE - plastic, polyurethane (PUR)
- Electrically conductive (antistatic). Electrical resistance <109 Ω
- Cast, dark grey, wear resistant, hardness 90 Shore A
- Wheel core - Aluminium die casting
- Bracket - Steel sheet metal, zinc plated ST. Stainless steel sheet metal, zinc plated, ESD STE
- Swivel head bracket
- Dual greese lubricated ball bearing
- Dust protection ring on type L / LF, plastic, polyethylene (PE)
- Operating temperature -20º C to +80º C
