Please select desired options to reveal part number, price and availability
Type

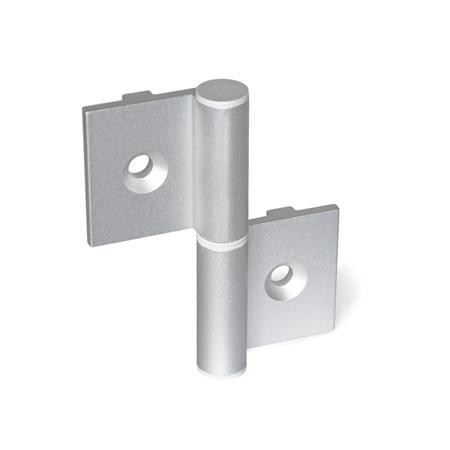

A - exterior hinge wing
I - interior hinge wing
Identfication
C - with countersunk holes
Product Description
GN2292 Hinges, for Aluminium Profiles, with Guide Step
GN 2292 hinges are made of drawn profiled aluminum and are used on doors and covers, for example. The guide step allows them to be quickly and easily mounted to all commercially available profile systems with a nominal size of 40 mm and groove width “n”.
Given the external hinge wing, type A hinges allow mounting with a very small door gap. The type I is fastened in the door gap. The mounting screws are therefore inaccessible and hence protected from vandalism when the door is closed.
The hinges are delivered loose and must be mounted according to the accompanying instructions. Any hinge combination may be realized thanks to the modular design and available accessories.
Specification
Aluminum - anodized, natural colour
Bearing bushing / cover cap - Plastic, Technopolymer (Polyamide PA), grey, RAL 7035
Tapered dowel pin ISO 8741 - Steel zinc plated, blue passivated
On Request
Other lengths and hole spacings
Other finishes
