GN274.1 Swivel Clamp Linear Actuator Connector, Aluminium

CloseNextPrevious



CloseNextPrevious

GN274.1: Swivel Clamp Linear Actuator
Connector - Type: MZ - with Centring Step



CloseNextPrevious

GN274.1: Swivel Clamp Linear Actuator
Connector - Type: OZ - w/out Centring Step



CloseNextPrevious

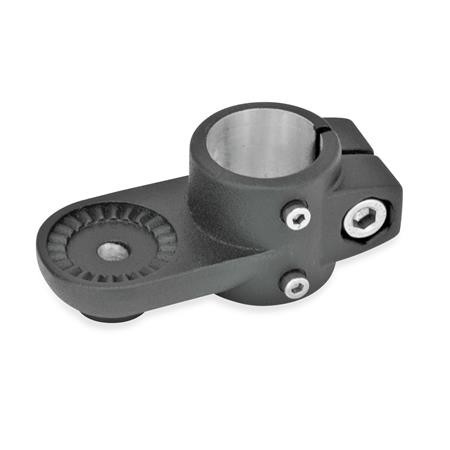

GN274.1: Swivel Clamp Linear Actuator
Connector - Type: IV - with Female Serration



CloseNextPrevious

GN274.1: Swivel Clamp Linear Actuator
Connector - Type: AV - with Male Serration



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type OZ - Without centring step (smooth)

Type MZ - With centring step

Type AV - With External serration

Type IV - With Internal serration

Identification 2 - with one clamping screw DIN 912 stainless steel

CAD Viewer Technical Data

Product Description

GN274.1 Swivel Clamp Linear Actuator Connector, Aluminium

The Polyamide bush of the swivel clamp linear actuator connectors GN 274.1 is bonded into the sliding bore.

By means of the clamping screw on the sliding bore the movement can either be set or the slider can be clamped (after setting of final adjustment).

As a rule the sliders are only supplied assembled on a linear actuator.

The hexagon nuts DIN985 are either zinc plated or in stainless steel to suit the screws.

The clamping nuts (Identification no. 1 - 2) of the connector clamps comprise a screw and a nut and, in the case of the hexagon screw and clamp-ing levers, a spacer tube is added.

Special executions: different surface finish or colours.

Specification

Aluminium AL, Black plastic coated textured finish SW

Guide bore - Mechanically machined

Slide bush - Polyamide

Socket cap screws DIN912 - Steel ST, zinc plated / Stainless Steel NI, AISI 304

Hexagon nuts DIN 985, Steel ST, zinc plated / Stainless Steel NI, AISI 304

Adjustable clamping levers GN911 - Zinc die casting

Inserts / Distance bushings - Stainless Steel NI, AISI 303
