GN273.1 Swivel Clamps Linear Actuator Connectors polyamide bush GN 273.1 273-1 GN273-1 GN 273-1

Standard Machine Elements > Guides, Spindles, Ball Rollers, Slide Units, Guide Rails & Linear Actuators > Linear Actuators / Linear Actuator Connectors
< Previous Product Next Product >

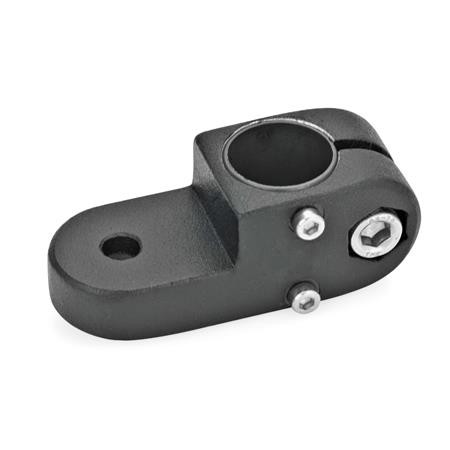

GN273.1 Swivel Clamp Linear Actuator Connector, Aluminium



Identification 2 - with one clamping screw DIN 912 stainless steel

Select Values to Buy:

Tech Spec:


GN273.1 Swivel Clamp Linear Actuator Connector, Aluminium

GN273.1 swivel clamp linear actuator connectors are normally supplied in connection with a linear actuator and for function control.

By means of the clamping screw on the guide bore d1, the movement can either be set or the linear actuator connector can be clamped (after setting of final adjustment).

The standard version of the clamping screw is a socket cap screw with hexagonal socket DIN 912. It can be replaced by a clamping kit GN911


Aluminum - plastic coated, black, RAL 9005, textured finish SW

Guide bore - mechanically machined

Slide bushing - Polyamide

Socket cap screws DIN 912 - Stainless Steel AISI 304

Hexagon nuts DIN 985 - Stainless Steel AISI 304

RoHS compliant


Select / Deselect Visible Columns
PartCoded1 ID No.Finishbd2d3d4d5klmsClamping lever for d3MaterialMass
