Please select desired options to reveal part number, price and availability
Options
Identification number 2 - with socket cap screw DIN 912, stainless steel
Product Description

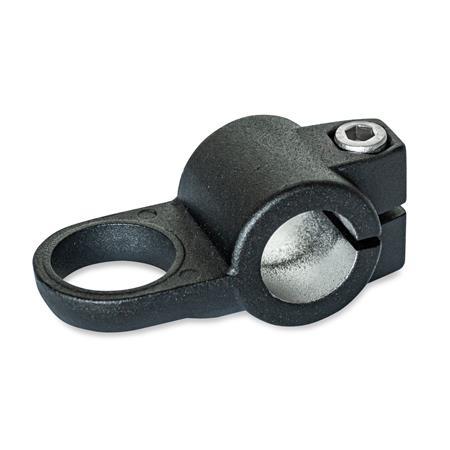

GN278.4 Sensor Holder, Aluminium
The clamping bore of the sensor holders GN 278.4 is machined and designed for construction tubings GN990 or DIN2391, DIN2395 and DIN2462.
At the screw location 'z', the socket cap screw reduces the bore cross-section for clamping.
For clamping without tools, the socket cap screw can be replaced by an adjustable lever GN911 (see table) .
Specification
Aluminium, powder coated, black SW - RAL 9005 textured finish
Socket cap screws DIN912 - Stainless steel AISI 304
Hex nuts DIN985 - Stainless steel AISI 304, self-locking via polyamide ring
Accessory
Adjustable Hand Levers GN911
