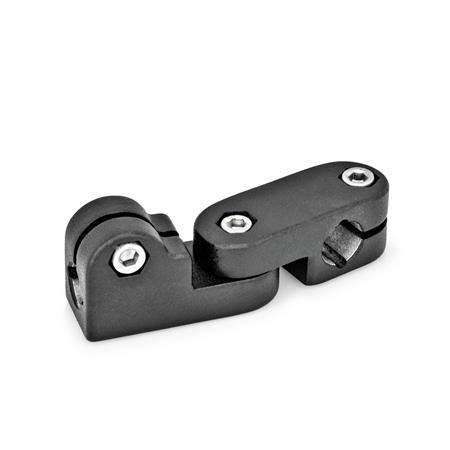

GN287 Swivel Clamp Connector Joint, Aluminium



images/300/GN287-Swivel-clamp-connector-joints-Aluminium-sketch_H.png

Identification number 2 - with three clamping screws DIN 912, stainless steel

Select Values to Buy:

Tech Spec:



GN287 Swivel Clamp Connector Joint, Aluminium

These swivel clamp connector joints are an assembly of swivel clamp connectors GN275 and GN277. Since the swivel clamp connectors have an identical swivel width 'b', all bores d1/d2 can be combined as required.

The clamping bores are mechanically machined and designed for construction tubings GN990 or DIN 2391, DIN 2395 and DIN 2462 respectively.

The standard version of the clamping screws are socket cap screws with hexagonal socket DIN 912. They can be replaced by clamping kits GN911

Specification

Aluminium, plastic coated. - Black, RAL 9005, textured finish SW. Blank BL, matt shot-blasted.

Clamping bores - mechanically machined

Socket cap screws DIN 912 - Stainless Steel AISI 304

Hexagon nuts DIN 985 - Stainless Steel AISI 304

Accessory

Adjustable clamping levers GN911 - Zinc die casting

RoHS compliant

Select / Deselect Visible Columns
PartCoded1d2IdFinishbd3k1k2l1l2l3m1m2Clamping
Lever
for d1
MaterialMass

GN287-B12-B12-2-SWB12B122SW25M6252510034.52529.548.5911-M6-22AL0.13
GN287-B12-B12-2-BLB12B122BL25M6252510034.52529.548.5911-M6-22AL0.145
GN287-B12-B14-2-SWB12B142SW25M6252510034.52529.548.5911-M6-22AL0.15
GN287-B12-B14-2-BLB12B142BL25M6252510034.52529.548.5911-M6-22AL0.15
GN287-B12-B16-2-SWB12B162SW25M6252510034.52529.548.5911-M6-22AL0.145
GN287-B12-B16-2-BLB12B162BL25M6252510034.52529.548.5911-M6-22AL0.145
GN287-B12-B18-2-SWB12B182SW25M6252510034.52529.548.5911-M6-22AL0.145
GN287-B12-B18-2-BLB12B182BL25M6252510034.52529.548.5911-M6-22AL0.145
GN287-B14-B12-2-SWB14B122SW25M6252510034.52529.548.5911-M6-22AL0.14
GN287-B14-B12-2-BLB14B122BL25M6252510034.52529.548.5911-M6-22AL0.14
GN287-B14-B14-2-SWB14B142SW25M6252510034.52529.548.5911-M6-22AL0.13
GN287-B14-B14-2-BLB14B142BL25M6252510034.52529.548.5911-M6-22AL0.14
GN287-B14-B16-2-SWB14B162SW25M6252510034.52529.548.5911-M6-22AL0.135
GN287-B14-B16-2-BLB14B162BL25M6252510034.52529.548.5911-M6-22AL0.135
GN287-B14-B18-2-SWB14B182SW25M6252510034.52529.548.5911-M6-22AL0.13
GN287-B14-B18-2-BLB14B182BL25M6252510034.52529.548.5911-M6-22AL0.13
GN287-B16-B12-2-SWB16B122SW25M6252510034.52529.548.5911-M6-22AL0.145
GN287-B16-B12-2-BLB16B122BL25M6252510034.52529.548.5911-M6-22AL0.145
GN287-B16-B14-2-SWB16B142SW25M6252510034.52529.548.5911-M6-22AL0.14
GN287-B16-B14-2-BLB16B142BL25M6252510034.52529.548.5911-M6-22AL0.14
GN287-B16-B16-2-SWB16B162SW25M6252510034.52529.548.5911-M6-22AL0.13
GN287-B16-B16-2-BLB16B162BL25M6252510034.52529.548.5911-M6-22AL0.135
GN287-B16-B18-2-SWB16B182SW25M6252510034.52529.548.5911-M6-22AL0.13
GN287-B16-B18-2-BLB16B182BL25M6252510034.52529.548.5911-M6-22AL0.13
GN287-B18-B12-2-SWB18B122SW25M6252510034.52529.548.5911-M6-22AL0.145
GN287-B18-B12-2-BLB18B122BL25M6252510034.52529.548.5911-M6-22AL0.145
GN287-B18-B14-2-SWB18B142SW25M6252510034.52529.548.5911-M6-22AL0.14
GN287-B18-B14-2-BLB18B142BL25M6252510034.52529.548.5911-M6-22AL0.14
GN287-B18-B16-2-SWB18B162SW25M6252510034.52529.548.5911-M6-22AL0.135
GN287-B18-B16-2-BLB18B162BL25M6252510034.52529.548.5911-M6-22AL0.135
GN287-B18-B18-2-SWB18B182SW25M6252510034.52529.548.5911-M6-22AL0.13
GN287-B18-B18-2-BLB18B182BL25M6252510034.52529.548.5911-M6-22AL0.13
