GN300.6 Adjustable Hand Lever, All Stainless Steel, Threaded Stud

CloseNextPrevious



CloseNextPrevious

GN300.6: Adjustable Hand Lever
Type: AS - with External Hexagon



CloseNextPrevious

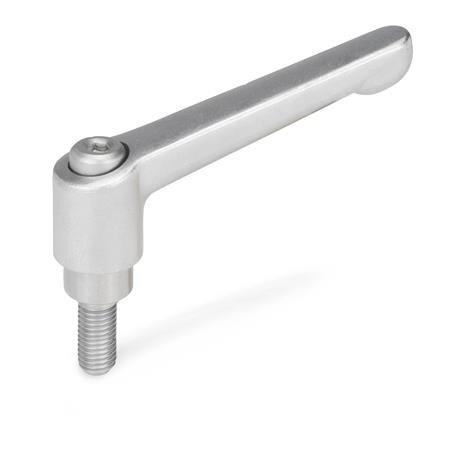

GN300.6: Adjustable Hand Lever
Type: IS - with Internal Hexalobular



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type AS - with external hexagon.

Type IS - with internal hexalobular (Torx®)

CAD Viewer Technical Data

Product Description

GN300.6 Adjustable Hand Lever, All Stainless Steel, Threaded Stud.

These adjustable hand levers, GN 300.6, with fully stainless steel handle, are ideal for applications where the part is exposed to challenging conditions which can cause a corrosion risk, or where stainless steel materials are preferred such as in food processing, chemical or pharmaceutical industries.

Retaining screws with hexagon head (Type AS) prevent water from accumulating.

These adjustable hand levers have proved to be ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged. Pulling the lever disengages the serrations and allows it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.

These stainless steel adjustable hand levers have a polished finish - for a matt finish, please see GN300.5.

Specification

Handle - Precision casting, Stainless Steel AISI CF-8, electropolished.

Threaded stud - Stainless Steel AISI 303

Retaining screw - Stainless Steel AISI 303

Spring - Stainless Steel AISI 301
