GN302
Adjustable Hand Lever, Straight Handle, Male, Zinc Die Cast
Please select desired options to reveal part number, price and availability
Product Description
GN302.1 Flat Adjustable Hand Levers
Adjustable hand levers GN 302.1 have a straight lever, not inclined, which is parallel to the clamping space.
Adjustable hand levers are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The center insert is connected to the lever via serrations which can easily be disengaged.
Pulling the lever disengages the serrations and allows it to be swiveled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.
Specification
Handle - Zinc die casting

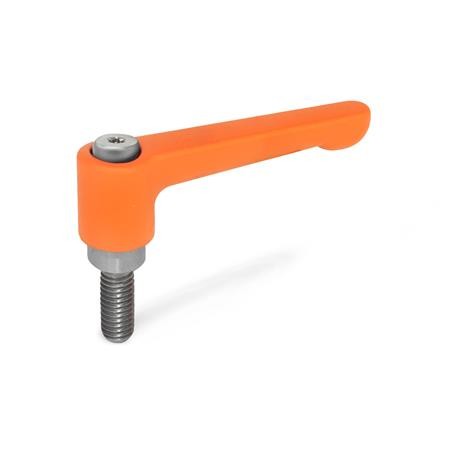

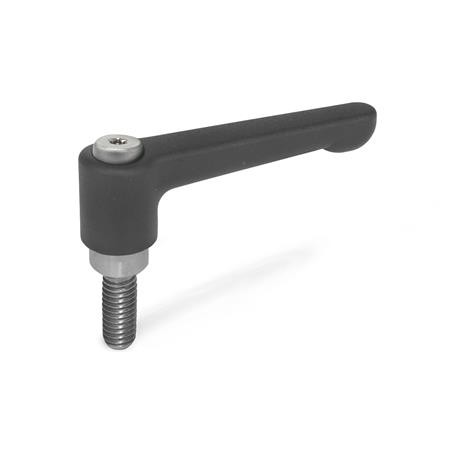

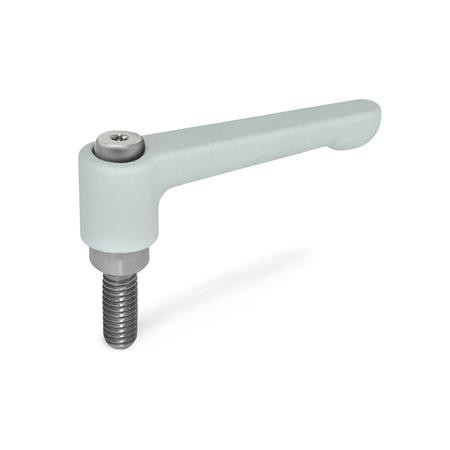

Plastic coated - black, RAL 9005, textured finish SW, orange, RAL 2004, textured finish OS, red, RAL 3000, textured finish RS, silver, RAL 9006, textured finish SR
Thread stud and retaining screw - Stainless steel, AISI 303
