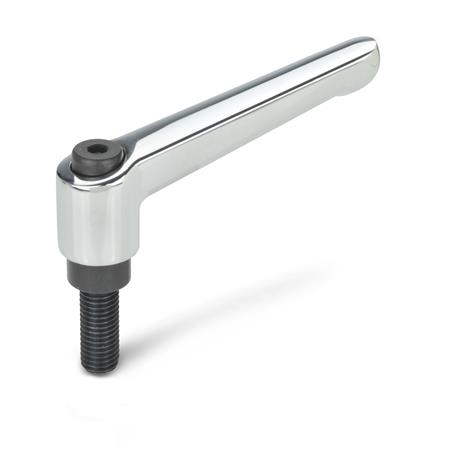

GN300: Adjustable Hand Lever
Colour: CR - Chrome-Plated



CloseNextPrevious

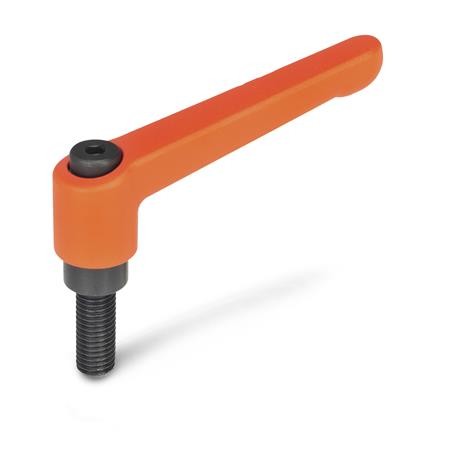

GN300: Adjustable Hand Lever
Colour: OS - Orange, Textured Finish



CloseNextPrevious

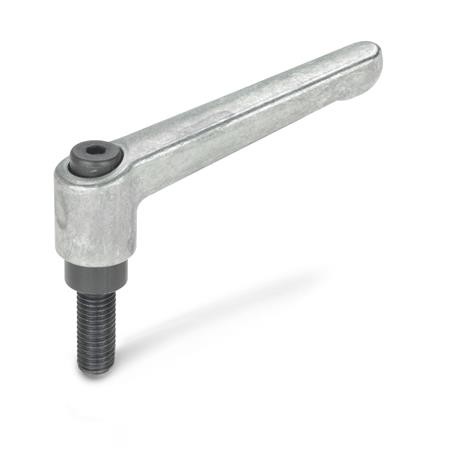

GN300: Adjustable Hand Lever
Colour: RH - Uncoated



CloseNextPrevious

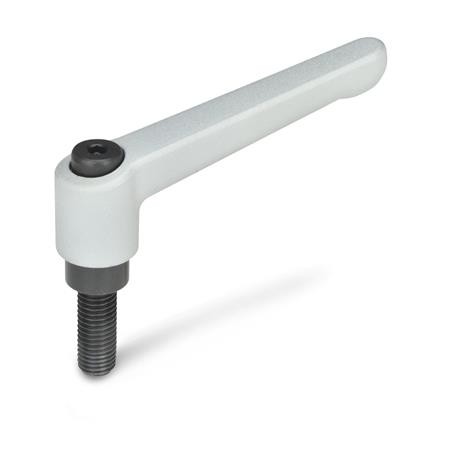

GN300: Adjustable Hand Lever
Colour: SR - Silver, Textured Finish



CloseNextPrevious

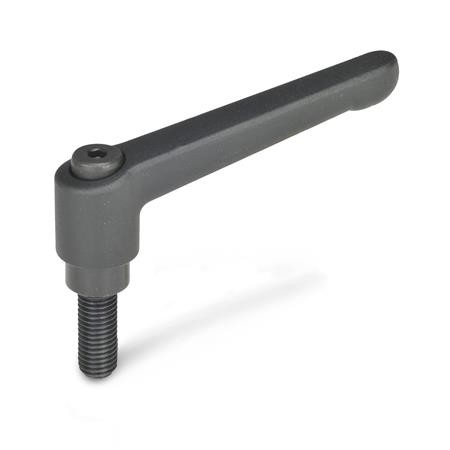

GN300: Adjustable Hand Lever
Colour: SW - Black, Textured Finish



CloseNextPrevious

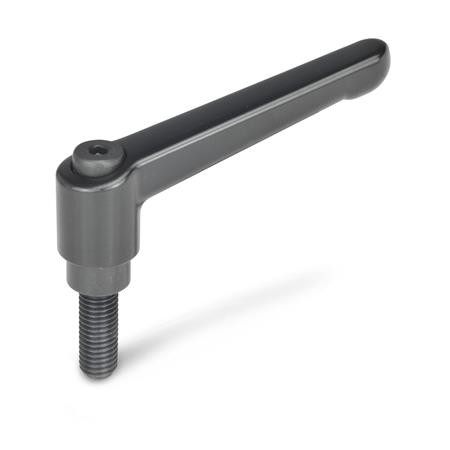

GN300: Adjustable Hand Lever
Colour: SZ - Black, Silk Finish



CAD Viewer Technical Data

Series Selector

CAD Viewer Technical Data

Product Description

GN300 Adjustable Hand Lever, Threaded Stud

These adjustable hand levers, GN 300, are designed to be comfortable in use and have a modern appearance.

These levers are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.

Pulling the lever disengages the serrations and allows it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.

Specification

Handle - Zinc die casting.

Plastic coated: Black - SW RAL 9005, textured finish. Black - SZ RAL 9011, silk finish. Orange - OS RAL 2004, textured finish. Red - textured finish, RS RAL 3000. Silver - SR textured finish, RAL 9006. Grey - GR, available whilst stocks last. Green - GN, available whilst stocks last.

chrome-plated - CR, not all available sizes are shown, more are available on request.

Uncoated RH, slide ground.

Threaded stud and retaining screw - steel, blackened, tensile strength class 5.8
