GN303.1 Adjustable Hand Lever, Stainless Steel Insert, Push Button





Select Values to Buy:

Tech Spec:



GN303.1 Adjustable Hand Lever, Stainless Steel Insert, Push Button

These adjustable hand levers are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged, with the push button making disengagement particularly easy. Its use is limited to applications where dismantling of the lever for installation is not required.

The stainless steel insert is ideal for applications with a higher than usual risk of corrosion, and is also useful for those instances where stainless steel is preferred, such as the food and medical industries, whist remaining a cost effective option.

Specification

Handle - Zinc die casting.

Plastic coated. Black, RAL 9005, textured finish SW.

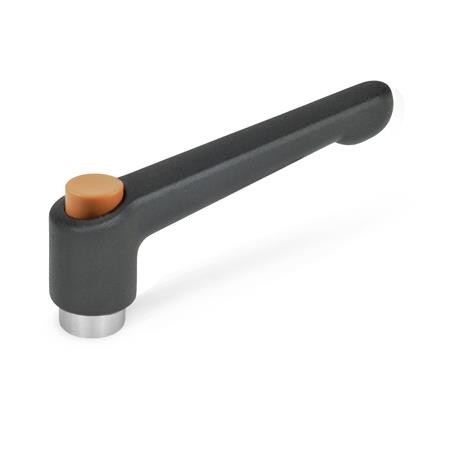

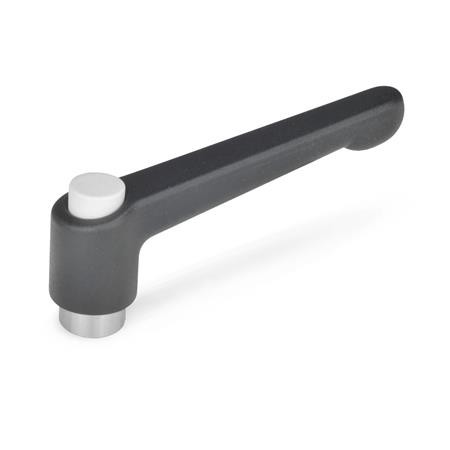

Push button - Plastic. Black, RAL 9005 S, orange, RAL 2004 O, grey, RAL 7035 G.

Threaded insert - Stainless Steel AISI 303.

Pin for push button - Stainless Steel.

RoHS compliant

Select / Deselect Visible Columns
PartCodel1d1Handle ColourPush Button Colourd3d4h1h2h3h4tMaterialMass

GN303.1-30-M3-SW-S30M3SWS101326.54313.57ZD0.03
GN303.1-30-M3-SW-O30M3SWO101326.54313.57ZD0.265
GN303.1-30-M3-SW-G30M3SWG101326.54313.57ZD0.1
GN303.1-30-M4-SW-S30M4SWS101326.54313.58ZD0.026
GN303.1-30-M4-SW-O30M4SWO101326.54313.58ZD0.027
GN303.1-30-M4-SW-G30M4SWG101326.54313.58ZD0.027
GN303.1-30-M5-SW-S30M5SWS101326.54313.58ZD0.02
GN303.1-30-M5-SW-O30M5SWO101326.54313.58ZD0.02
GN303.1-30-M5-SW-G30M5SWG101326.54313.58ZD0.025
GN303.1-30-M6-SW-S30M6SWS101326.54313.58ZD0.02
GN303.1-30-M6-SW-O30M6SWO101326.54313.58ZD0.03
GN303.1-30-M6-SW-G30M6SWG101326.54313.58ZD0.026
GN303.1-45-M4-SW-S45M4SWS101326.54353.58ZD0.038
GN303.1-45-M4-SW-O45M4SWO101326.54353.58ZD0.04
GN303.1-45-M4-SW-G45M4SWG101326.54353.58ZD0.035
GN303.1-45-M5-SW-S45M5SWS101326.54353.58ZD0.036
GN303.1-45-M5-SW-O45M5SWO101326.54353.58ZD0.04
GN303.1-45-M5-SW-G45M5SWG101326.54353.58ZD0.033
GN303.1-45-M6-SW-S45M6SWS101326.54353.58ZD0.04
GN303.1-45-M6-SW-O45M6SWO101326.54353.58ZD0.05
GN303.1-45-M6-SW-G45M6SWG101326.54353.58ZD0.034
GN303.1-63-M6-SW-S63M6SWS13.517.532.56.545411ZD0.08
GN303.1-63-M6-SW-O63M6SWO13.517.532.56.545411ZD0.076
GN303.1-63-M6-SW-G63M6SWG13.517.532.56.545411ZD0.08
GN303.1-63-M8-SW-S63M8SWS13.517.532.56.545411ZD0.073
GN303.1-63-M8-SW-O63M8SWO13.517.532.56.545411ZD0.05
GN303.1-63-M8-SW-G63M8SWG13.517.532.56.545411ZD0.083
GN303.1-78-M8-SW-S78M8SWS162137.5855414ZD0.12
GN303.1-78-M8-SW-O78M8SWO162137.5855414ZD0.12
GN303.1-78-M8-SW-G78M8SWG162137.5855414ZD0.114
GN303.1-78-M10-SW-S78M10SWS162137.5855414ZD0.11
GN303.1-78-M10-SW-O78M10SWO162137.5855414ZD0.11
GN303.1-78-M10-SW-G78M10SWG162137.5855414ZD0.11
