Product Description

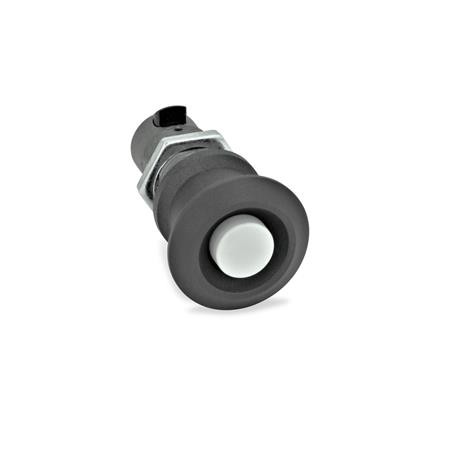

GN315 Snap Lock, Die Cast, Corrosion Resistant, Plastic Coated
Snap locks GN 315 are characterised by a radial, spring-loaded slide causing the locking action. When the door is closed, the locking action sets in automatically: the chamfered slide is first pushed back via an appropriately arranged lug and then moved into the locking position by the pressure spring.
The door is unlocked via the push button.
To operate the doors, these snap locks are fitted with an operating button.
Specification
Housing - Zinc die casting, corrosion-resistant, ZNDG Pass nano®-coating, anthracite colored.
Setting sleeve - Steel ST, plastic coated black, matt textured finish.
Operating button / slide - Plastic (Polyamide PA), black, matt finish.
Push button - Plastic (Polyamide PA), light grey.
Hexagon nut - Steel ST, zinc plated, blue passivated.
