GN139.1 Hinge, Zinc Die Cast, with Safety Switch and Cable Connector

CloseNextPrevious



CloseNextPrevious

GN139.1: Hinge
Type: AK - Cable at the Top



CloseNextPrevious

GN139.1: Hinge
Type: BK - Cable from the Bottom



CloseNextPrevious

GN139.1: Hinge

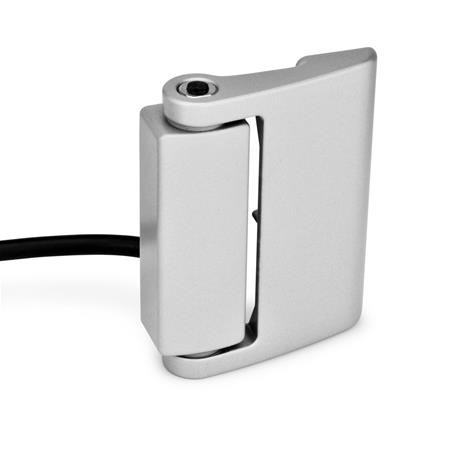

Type: CK - Cable from the Back



CAD Viewer Technical Data

Series Selector

Options

Type AK - Cable at the top

Type BK - Cable from the bottom

Type CK - Cable from the back

CAD Viewer Technical Data

Product Decription

GN139.1 Hinge, Zinc Die Cast, with Safety Switch and Cable Connector

These hinges GN 139.1, with integrated safety switches have been designed for monitoring doors and covers of machines and plant equipment. Opening the door will activate the switch contacts which, in turn, will then interrupt a protective circuit via break contact (NC) and at the same time signal the door opening by closing a normally open contact element (NO).

The contact blocks are fitted with positive opening slow action contacts, i.e. they will definitely be separated when activated and have no hysteresis. The angle at which the switching points are reached are adjustable.

Together with the integrated contact blocks, the hinges are a compact, easy to mount unit with an attractive design. The mounting from the back makes the hinge more tamper proof.

Specification

Zinc die casting, plastic coated, silver metallic

Pin - Stainless Steel NI AISI 303
