GN31 Levelling Feet, Stainless Steel, Optional Lock Nut

images/300/GN31_diagram_W.png

Type B1 - matt shot-blasted, rubber inlay, black

Type B2 - matt shot-blasted, rubber inlay, white

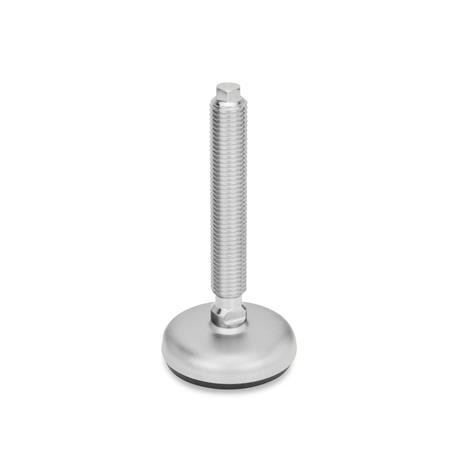

Type B3 - matt shot-blasted, vulcanised rubber, black

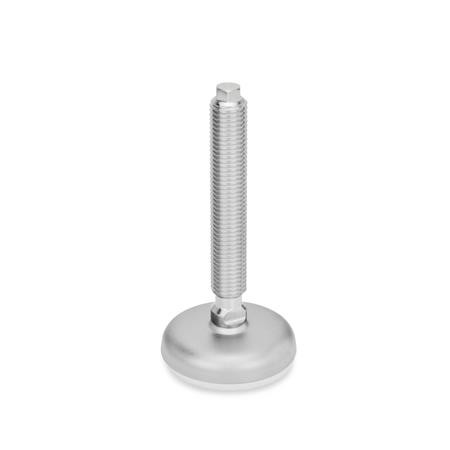

Type B4 - matt shot-blasted, vulcanised rubber, white

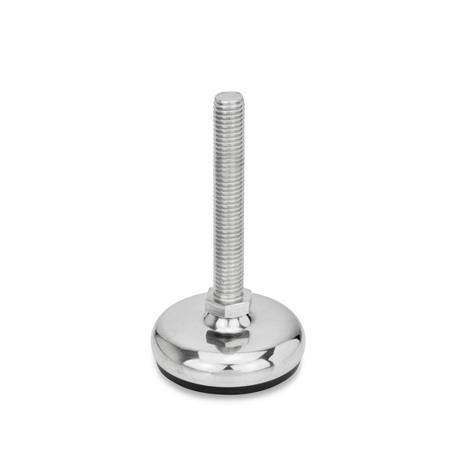

Type C3 - polished, vulcanised rubber, black

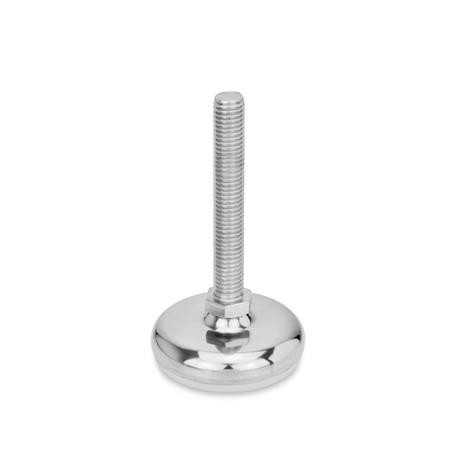

Type C4 - polished, vulcanised rubber, white

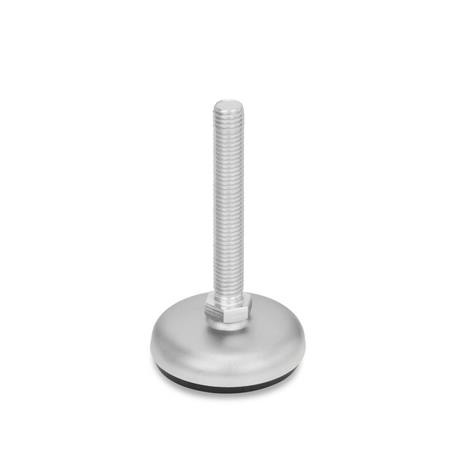

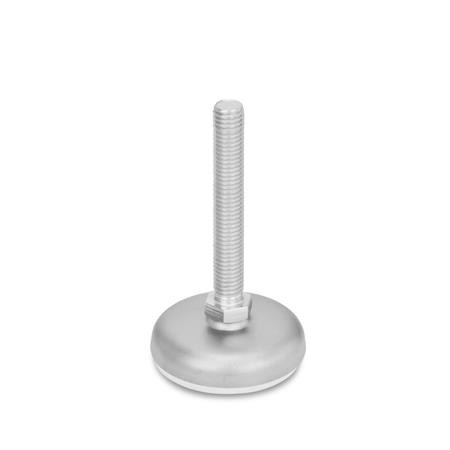

Version - without locknut, external hexagon below

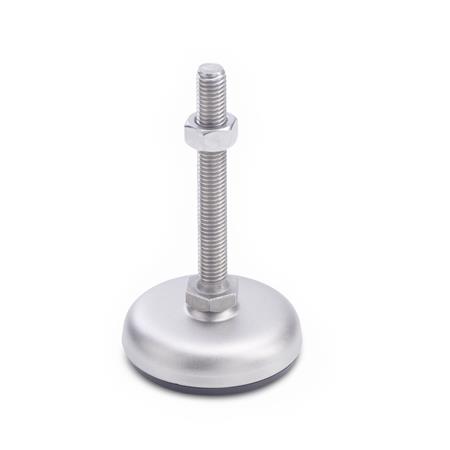

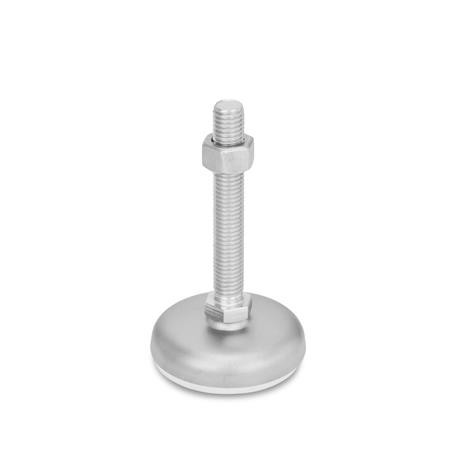

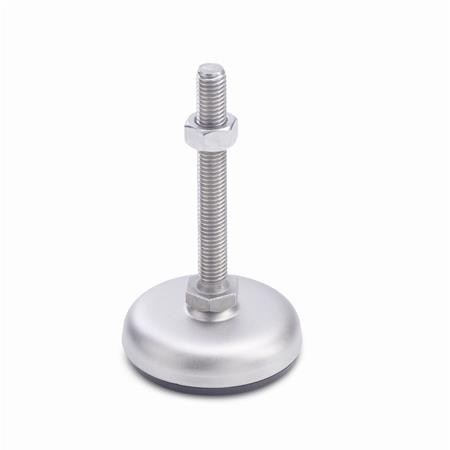

Version SK - with locknut, external hexagon below

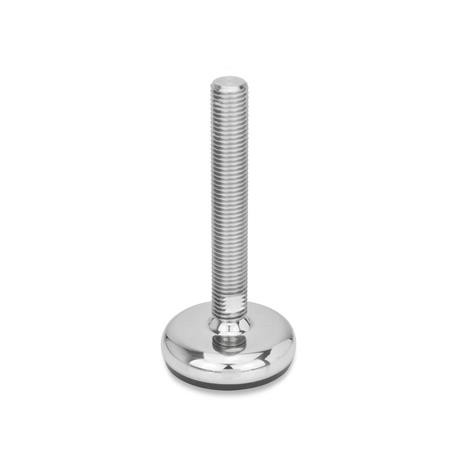

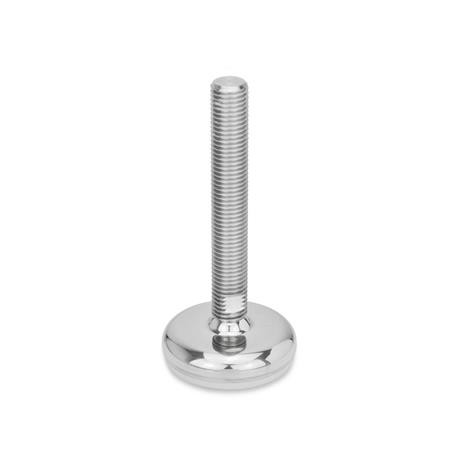

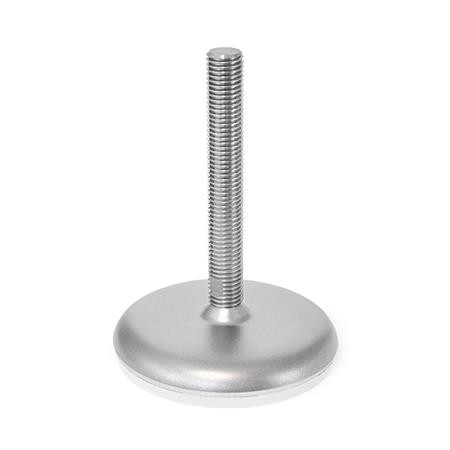

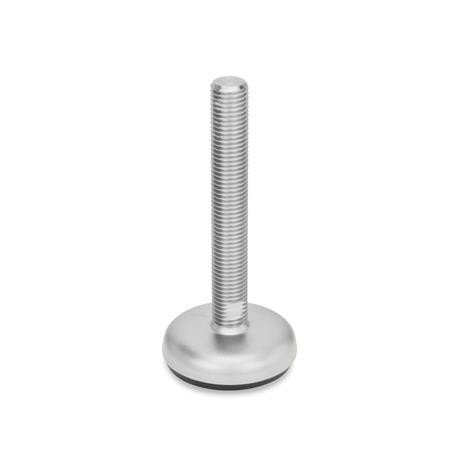

Version - without locknut, flat width below

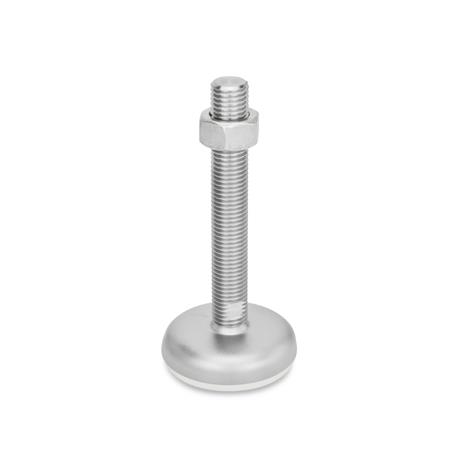

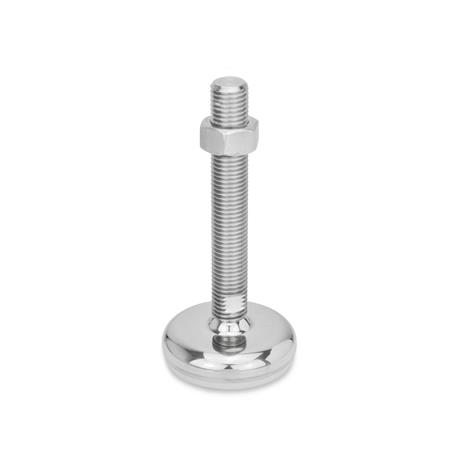

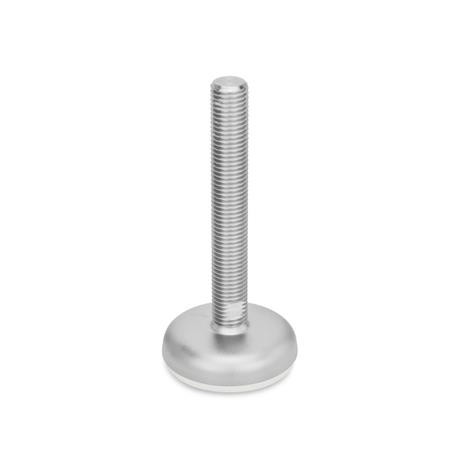

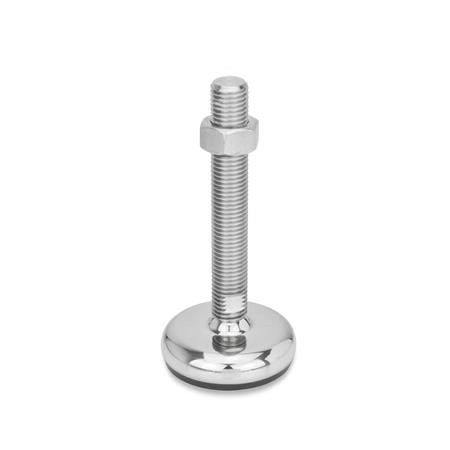

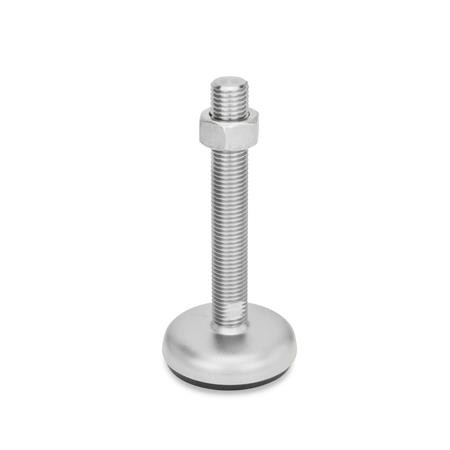

Version TK - with locknut, flat width below

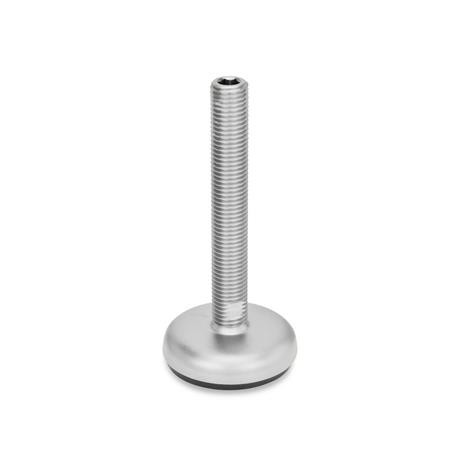

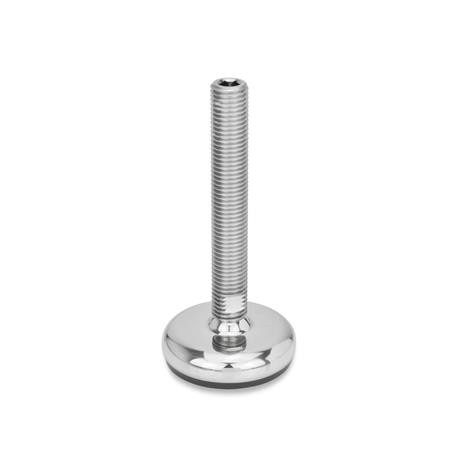

Version - without locknut, flat width below, internal hexagon above

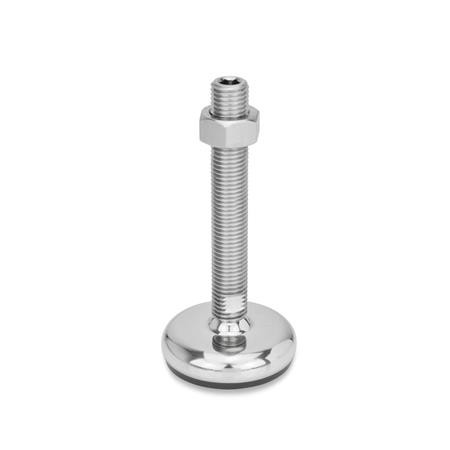

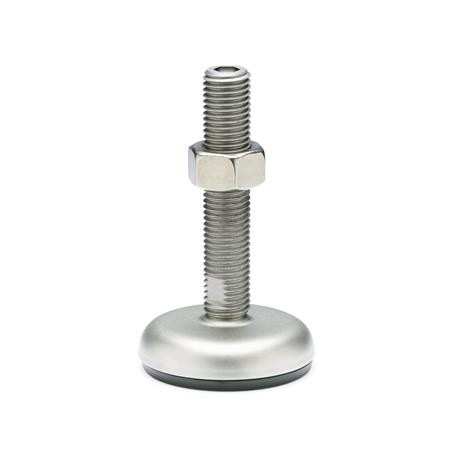

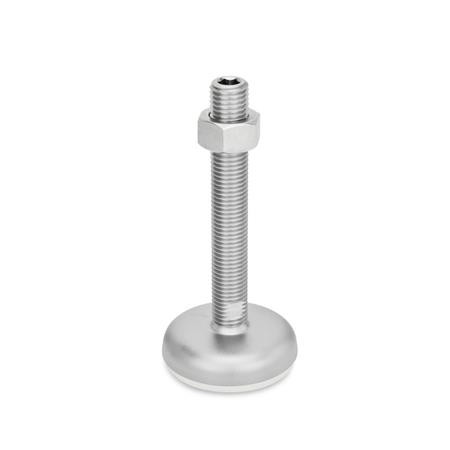

Version UK - with locknut, flat width below, internal hexagon above

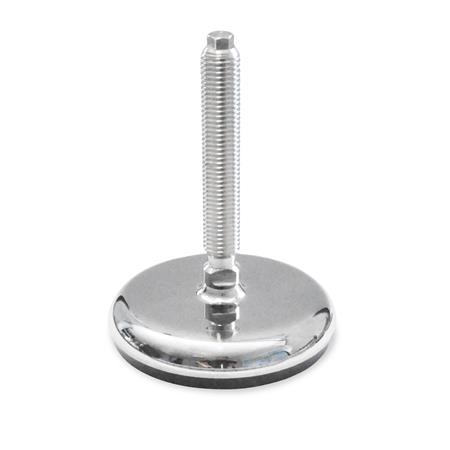

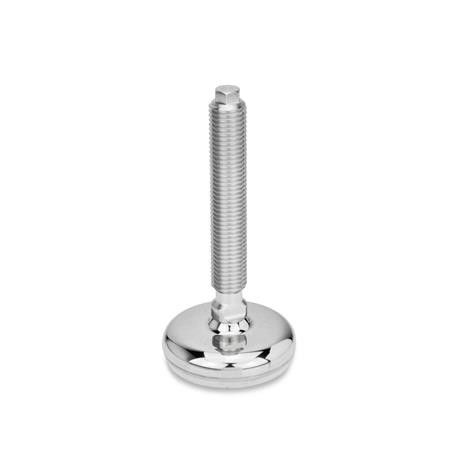

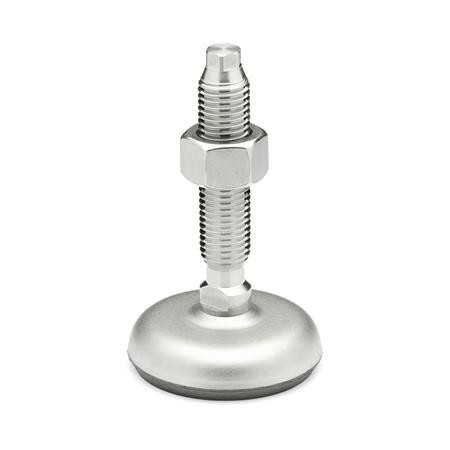

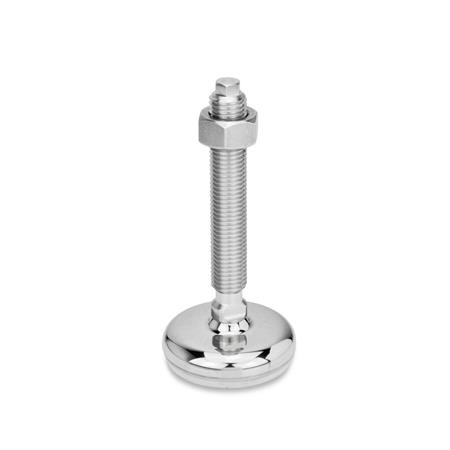

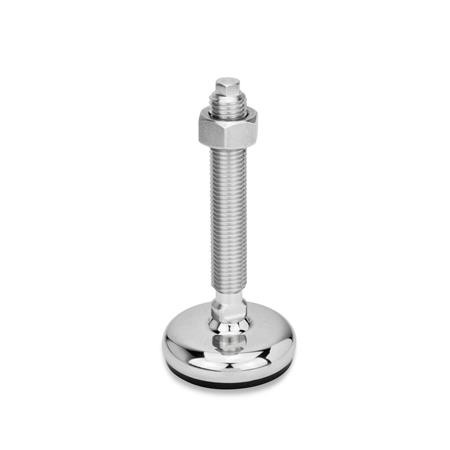

Version V - without locknut, flat width below, external hexagon above

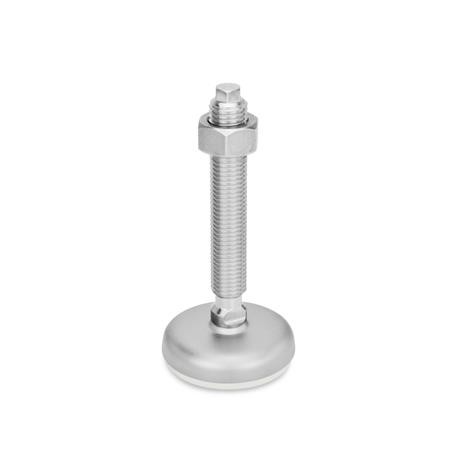

Version VK - without lock, flat width below, external hexagon above

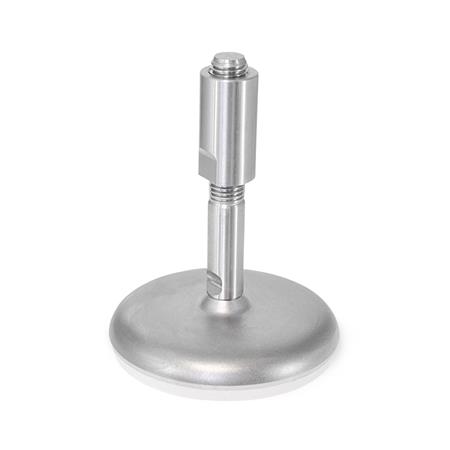

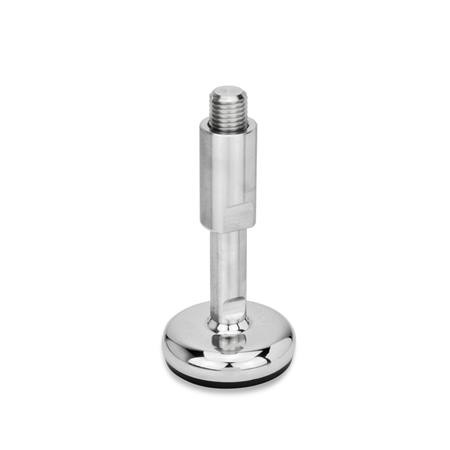

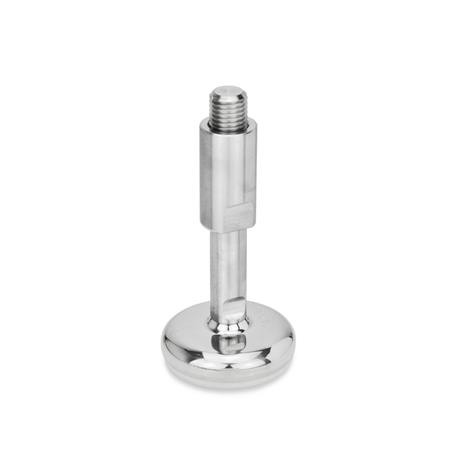

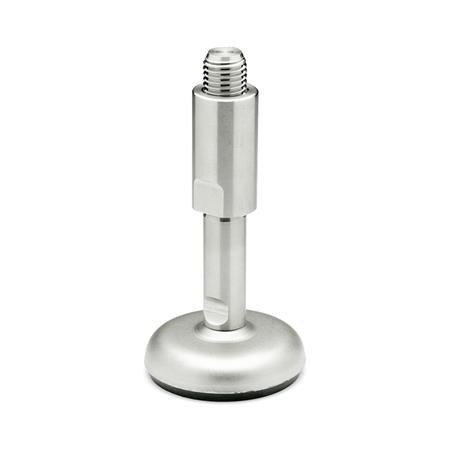

Version W - with adjustable sleeve

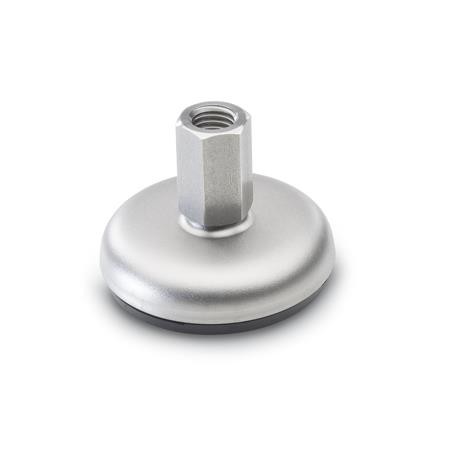

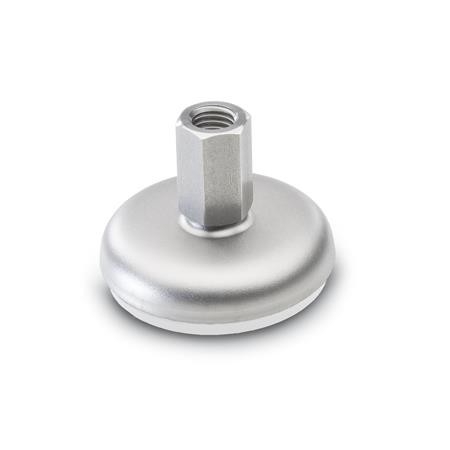

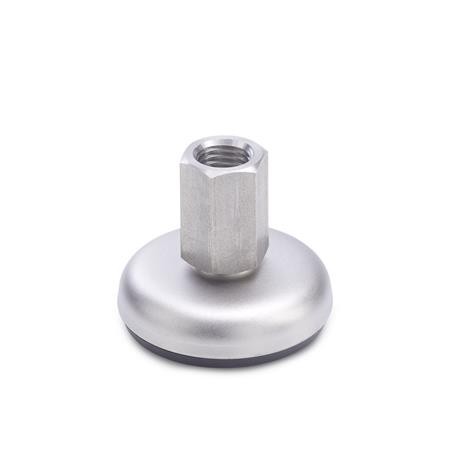

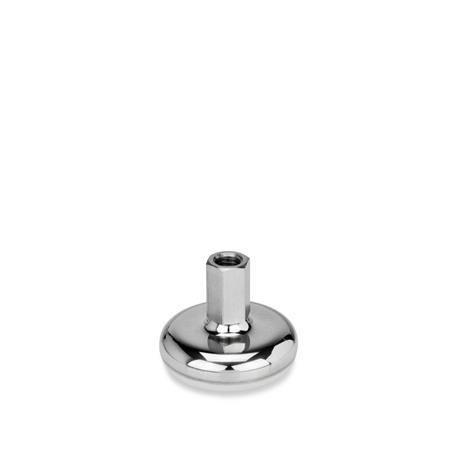

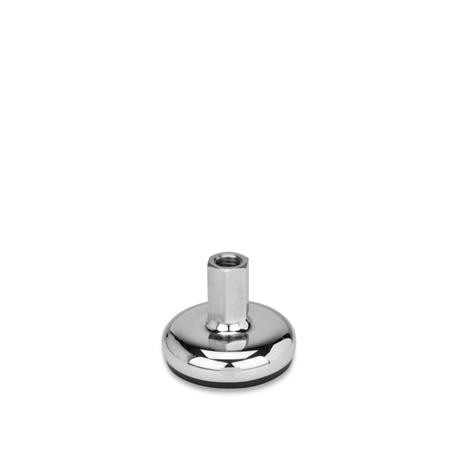

Version - with female thread



Select Values to Buy:

Tech Spec:



GN31 Levelling Feet, Stainless Steel, Optional Lock Nut

All are delivered mounted and are not removeable.

Stainless Steel Levelling feet B3, B4, C3, C4 with vulcanised rubber and the screw W represent a hygienic version which obtains the Equipment acceptance certificate USDA (US Department of Agriculture).

Specification

Base Plate - sheet metal, Stainless Steel AISI 304

Threaded Stem - Stainless Steel AISI 303

Hexagon nut ISO 4032 - Stainless Steel AISI 304

Rubber underlay, inlaid - black: Perbunan® (NBR), 80±5 Shore A. White: Perbunan® (NBR), 80±5 Shore A

Rubber underlay, vulcanised 80±5 Shore A - black: Perbunan® (NBR). White: Perbunan® (NBR)

RoHS compliant

Standard part number GN340.5, GN341, GN341.1 and GN341.2 has been changed! Because of a change of the standard part number your input is no longer valid. Your search was automatically changed to the new standard part number GN31.
