GN331 Tubular Handles With Power Switching Function

CAD Viewer Technical Data

Series Selector

Type T0 - Without Button

Type T1 - With One Button

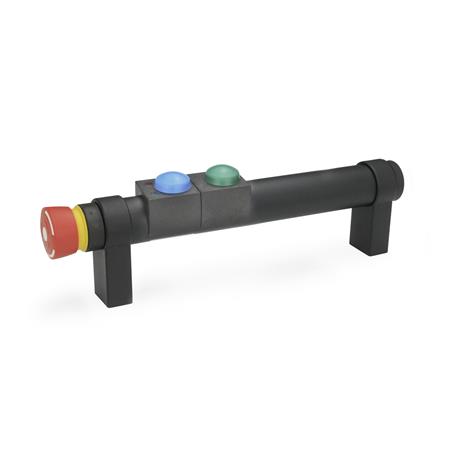

Type T2 - With Two Buttons

Identification no. 1 - Without Emergency Stop

Identification no. 2 - With Emergency Stop

CAD Viewer Technical Data

Product Description

GN331 Tubular Handles With Power Switching Function

These tubular handles with power switching function are suitable for unlocking safety tumblers in rotating, detachable or side sliding safety devices which must be closed in order to ensure the required operational safety.

By integrating functions such as emergency stop, start, release, reset and LED status display, this tubular handle allows the machine to be monitored and operated directly at the door or gate.

These handles save mounting and installation work, are attractively and ergonomically designed: the switching and operating functions are located exactly where they are needed.

Specification

Tube 30 x 1,5 - Aluminium, plastic coated, black, RAL 9005, textured finish, SW. Anodized, natural colour EL.

Handle shanks - zinc die casting, plastic coated, black, RAL 9005, textured finish.

Cover caps - (for version without emergency stop), plastic, light grey.

Application Example

As you can see in the example image, this type of handle is well suited to multi-function operations. Here the handle variant GN332 is being used on a deburring machine. The only difference between this handle and GN331 is the angled shanks on GN332. The handle shown is the one button variant, however as another button and an emergency stop function could be added, it is easy to see that this handle combines several functions in one.
