GN342.2 Levelling Feet foot Anti Vibration Mounting steel male

Standard Machine Elements > Levelling Feet, Lifting Gear and Rubber Elements > Levelling Feet
< Previous Product Next Product >

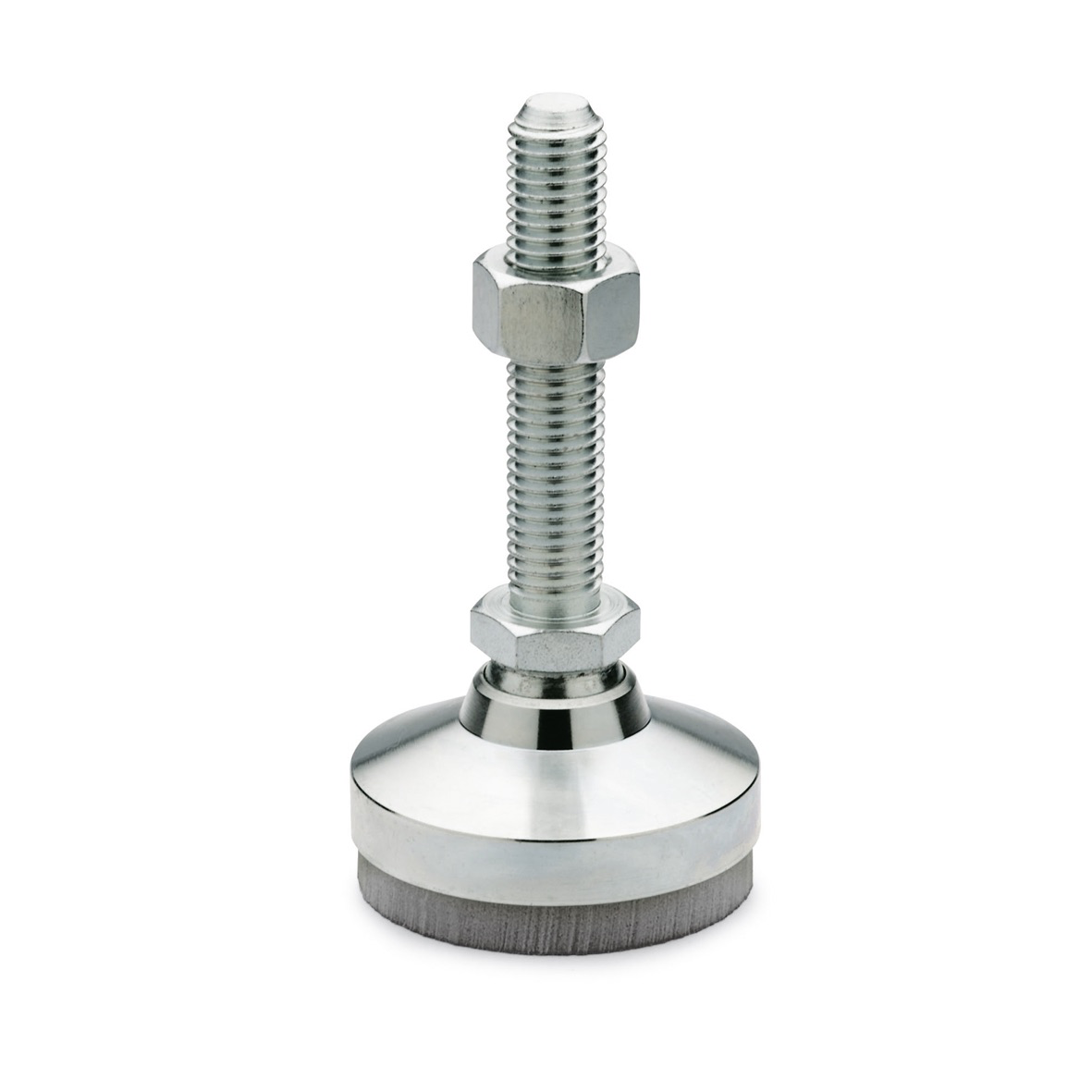

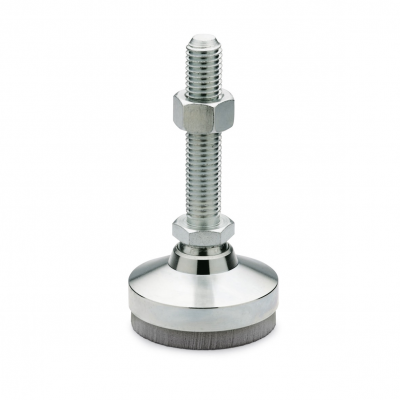

GN342.2 Levelling Foot, Steel, Male, Anti Vibration Mounting

Type SV - with vibration absorbing insert Sylomer V12

Select Values to Buy:

Tech Spec:



GN342.2 Levelling Foot, Steel, Male, Anti Vibration Mounting

The specified load in the above table is a recommendation up to which the damping insert can be permanently subjected.

This static load equals a thrust on the area of 0,4 N/mm2, at which the damping material reaches its optimum dynamic damping ability. This also takes into account an additional load up to 0,6 N/mm2 in the event of a dynamic load.

Steel Tensile strength 500 N/mm2, zinc plated, blue passivated

Damping element, PUR-elastomer (Sylomer V12), anti-slip, grey, glued in housing, oil resistant, operating range from -30°C up to + 70°C

Specification

Hexagon nut
ISO 4032 steel, zinc plated

RoHS compliant

Select / Deselect Visible Columns
Close
Hided1Show
Hided2Show
Hidel1Show
HideTypeShow
Hided3Show
Hidel2Show
Hidel3Show
Hidel4 0Show
Hidel4 0,4Show
Hidel4 0,6Show
HideA/FShow
HideArea damping element in mm2Show
HideLoad in N by compressionShow
HideMaterialShow
PartCoded1d2l1Typed3l2l3l4 0l4 0,4l4 0,6A/FArea damping element in mm2Load in N by compressionMaterialMass

GN342.2-32-M10-50-SV32M1050SV3029115.54.33.415707280ST0.107
GN342.2-32-M10-80-SV32M1080SV3029115.54.33.415707280ST0.122
GN342.2-40-M12-63-SV40M1263SV38309.564.83.9171134450ST0.17
GN342.2-40-M12-100-SV40M12100SV38309.564.83.9171134450ST0.189
GN342.2-50-M12-63-SV50M1263SV4830.596.55.34.4171809720ST0.208
GN342.2-50-M12-100-SV50M12100SV4830.596.55.34.4171809720ST0.233
GN342.2-60-M16-80-SV60M1680SV5837.51075.84.92426411050ST0.43
GN342.2-60-M16-125-SV60M16125SV5837.51075.84.92426411050ST0.495
