GN357 Rubber Buffers, with Concave Stop, Steel
CloseNextPreviousGN357 Rubber Buffer with Concave Stop Surface

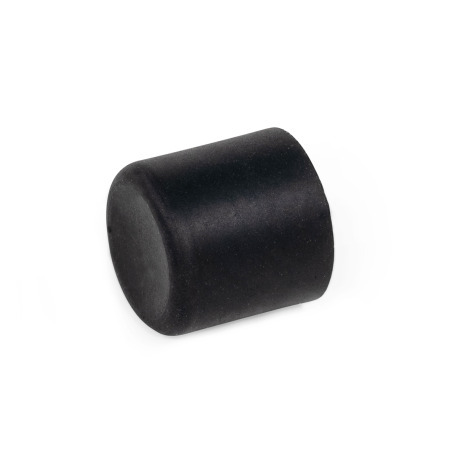

Type E With Internal Thread
CloseNextPreviousGN357 Rubber Buffer with Concave Stop Surface

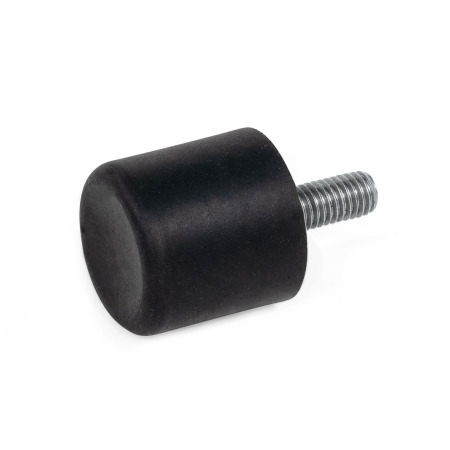

Type S With Threaded Stud
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Type E - With internal thread
Type S - With threaded stud
Product Description
GN357 Rubber Buffers, with Concave Stop, Steel
Rubber buffers GN 357 are used as end stops.
They absorb impact energy during collisions, prevent damage due to heavy vibrations and minimize rebound. They also reduce noise and harmful vibrations.
The concave shape of the impact side adapts well to uneven surfaces.
Specification
- Natural rubber NR, black, operating temperature -40 degrees C to +80 degrees C, vulcanised to the cover plate
- Hardness Shore A ±5
- Soft 40
- Medium 55
- Hard 70
- Cover plate / Threaded bushing / Threaded stud - steel, zinc plated, blue passivated.
CAD Viewer
Technical Data
