GN36.1
Foot Plates, without Central Fastening Hole
Please select desired options to reveal part number, price and availability
Options

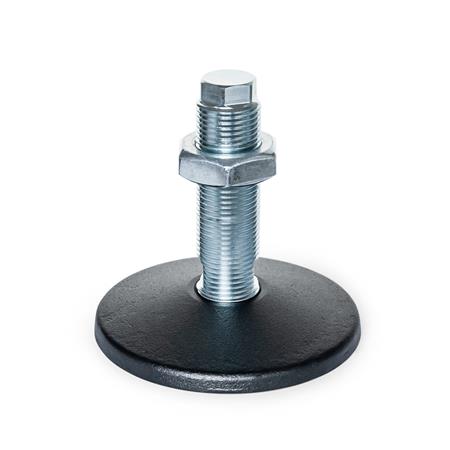

Type A - without rubber underlay

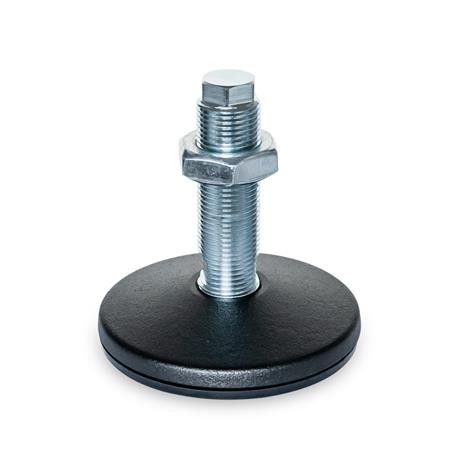

Type B - with rubber underlay

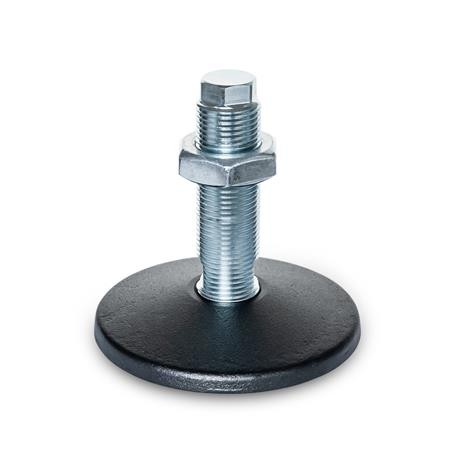

Type C - with O-ring
Product Description
GN36 Machine Feet, without Central Fastening Hole
Machine feet GN 36 are characterised by their solid construction and large variety. They are used especially on large and heavy systems and machines.
Foot plates and threaded studs are not connected together, during setup they are automatically centered by the radius at the contact point.
Type B with rubber underlay prevents slipping to the side, protects delicate surfaces and dampens vibrations and tremors. Type C with O-ring provides a seal over the ground to prevent the build-up of dirt under the foot.
Specification
Foot plate - Steel, plastic coated, black, RAL 9005, textured finish
Threaded studs / Hexagon nut ISO 8675 - Steel, zinc plated, blue passivated
Rubber underlay, inlaid - black, Perbunan® (NBR) 85±5 Shore A
O-ring, inlaid - black, Perbunan® (NBR)≈ 70 Shore A
