GN409.1 Positioning Element, Male Thread, Steel

 images/300/GN409.1-Positioning-elements-with-male-thread-sketch_H.png

Type B - Smooth contact face

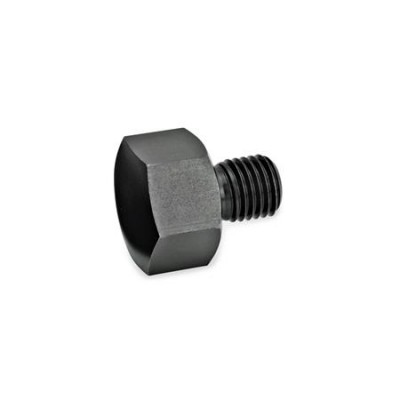

Type K - Spherical contact face

Type R - Serrated contact face



Select Values to Buy:

Tech Spec:



GN 409.1 Positioning Element, Male Thread, Steel

These positioning elements with male thread are designed for use as locating plungers, stops and thrust blocks. Choice of smooth, spherical or serrated contact face.

Specification

Steel, case hardened, blackened.

RoHS compliant

Select / Deselect Visible Columns
PartCodehd1Typed2lA/FeMaterialMass

GN409.1-10-M8-B10M8B17101719.4ST0.02
GN409.1-10-M8-K10M8K17101719.4ST0.02
GN409.1-10-M8-R10M8R17101719.4ST0.02
GN409.1-10-M10-B10M10B19121921.9ST0.028
GN409.1-10-M10-K10M10K19121921.9ST0.027
GN409.1-10-M10-R10M10R19121921.9ST0.026
GN409.1-10-M12-B10M12B22142225.2ST0.04
GN409.1-10-M12-K10M12K22142225.2ST0.037
GN409.1-10-M12-R10M12R22142225.2ST0.038
GN409.1-15-M10-B15M10B19121921.9ST0.04
GN409.1-15-M10-K15M10K19121921.9ST0.04
GN409.1-15-M10-R15M10R19121921.9ST0.039
GN409.1-15-M12-B15M12B22142225.2ST0.056
GN409.1-15-M12-K15M12K22142225.2ST0.054
GN409.1-15-M12-R15M12R22142225.2ST0.054
GN409.1-15-M16-B15M16B30193033ST0.09
GN409.1-15-M16-K15M16K30193033ST0.105
GN409.1-15-M16-R15M16R30193033ST0.106
GN409.1-20-M16-B20M16B30193033ST0.14
GN409.1-20-M16-K20M16K30193033ST0.135
GN409.1-20-M16-R20M16R30193033ST0.136
