Please select desired options to reveal part number, price and availability
Options
Type B - without rest position
Type C - with rest position
Product Design

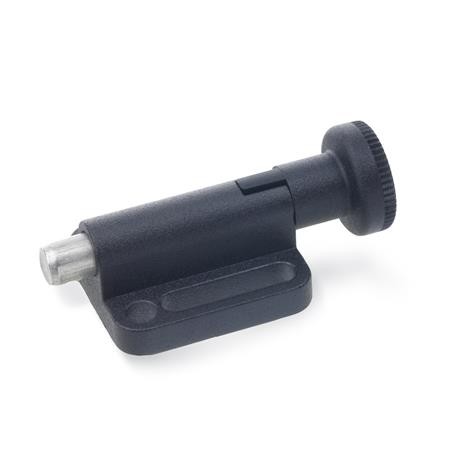

GN417 Indexing Plunger, Optional Rest Position, With Knob
Indexing plungers GN 417 with flange are mounted parallel to the plungers and have an extremely low height. The mounting hole pattern with slots offers generous adjustment options, such as for the use of aluminum sections. The use of ISO7092 washers makes it easier to mount the parts using the slots.
Indexing plungers with rest position (type C) are used for such applications where the plunger has to stay in its retracted position. After pulling out, the knob is turned by 90°. A notch keeps the plunger in this position.
Specification
Socket - Zinc die casting, Plastic coated, black, textured finish
Plunger pin - Stainless Steel, AISI 303
Spring - Stainless Steel, AISI 301
Knob Plastic (Polyamide PA) - black, matt finish, not removable
Accessory
Locators GN417.1
