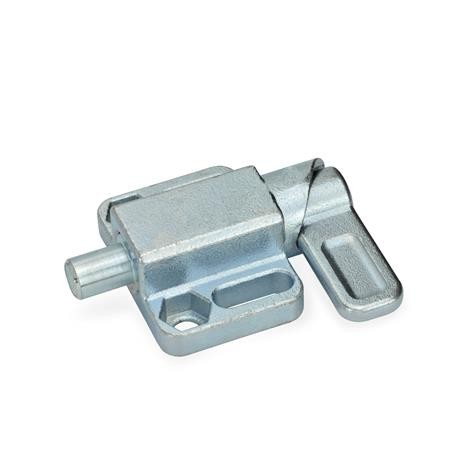

GN722.3 Spring Latch, with Flange, for Surface Mounting

 images/300/GN722.3-Steel-drawing_H.png

Type L - left indexing cam

Type R - right indexing cam



Select Values to Buy:

Tech Spec:



GN 722.3 Spring Latch, with Flange, for Surface Mounting

These spring latches are used when the indexing pin needs to be temporarily retracted. The indexing pin retracts by turning the latch by 180°, and a lock notch will hold the latch in both positions.

These spring latches are designed for use in steel construction or in locksmith shops where less precise positioning and locking is normally required. The dimensional tolerances are therefore chosen to ensure that functional safety is guaranteed under dirt exposure and that cost effective production methods are used.

Specification

Guide - Steel, precision casting, zinc plated, blue passivated, ZB. Zinc plated and plastic coated, textured finish, black, SW

Latch - Steel, precision cast, zinc plated, blue passivated.

Plunger - Steel, zinc plated, blue passivated.

Spring - Stainless steel, AISI 301

RoHS compliant
