GN416 Spring Latch, Flange for Surface Mounting

CloseNextPrevious



CloseNextPrevious

GN416: Spring Latch
Type: L1



CloseNextPrevious

GN416: Spring Latch
Type: R1



CloseNextPrevious

GN416: Spring Latch
Type: S



CAD Viewer Technical Data

Series Selector

Options

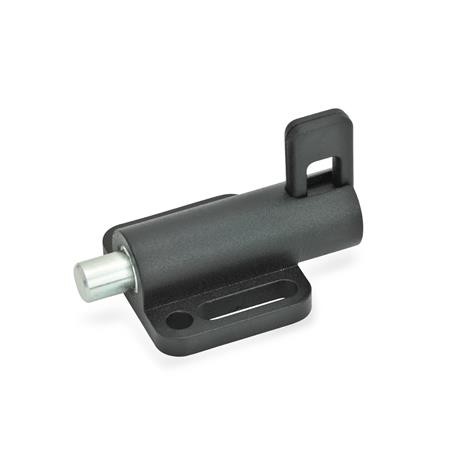

Type S - Without locking, without rest position.

Type L1 - Locking / Rest position, anitclockwise rotation.

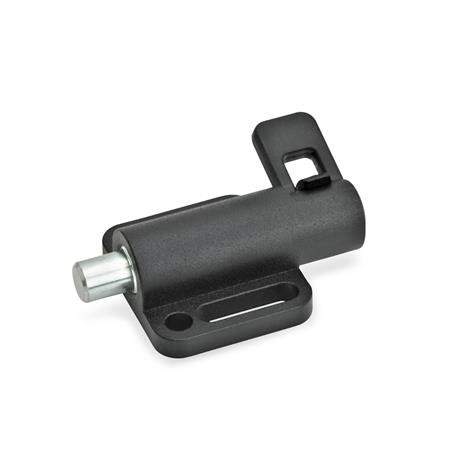

Type R1 - Locking / Rest position, clockwise rotation.

CAD Viewer Technical Data

Product Description

GN416 Spring Latch, Flange for Surface Mounting

The plunger of these spring latches, GN 416, is operated by an axial pulling of the latch lever. This type of operation from the top has advantages in certain installation situations. They are used to align and hold different parts of equipment together. They are versatile & cost effective.

The pins of Type S spring latches are engaged in the housing to prevent rotation, and therefore lock in the starting position but not the retracted position. Types R1 and L1 spring latches offer a locking function in the starting as well as in the retracted position, preventing unintentional operation. A lock notch holds the latch lever in both positions.

The adjustment range is designed in such a way that ISO7092 washers can be used within the adjustment slot in the housing.

Specification

Housing - Zinc die casting, plastic coated, black, RAL 9005, textured finish.

Plunger pin - Steel ST, zinc plated, blue passivated.

Spring - Stainless Steel NI, AISI 301

Latch lever Plastic Technopolymer (Polyamide PA) - black, matt, not removable.
