GN722.2 Spring Latches Surface Mounting indexing pin Stainless Steel

Standard Machine Elements > Indexing Plungers, Locking pins & Spring Plungers > Cam Action Indexing Plungers
< Previous Product Next Product >

GN722.2 Spring Latch, Flange for Surface Mounting, Stainless Steel





Type A - Latch position right-angled to fixing holes

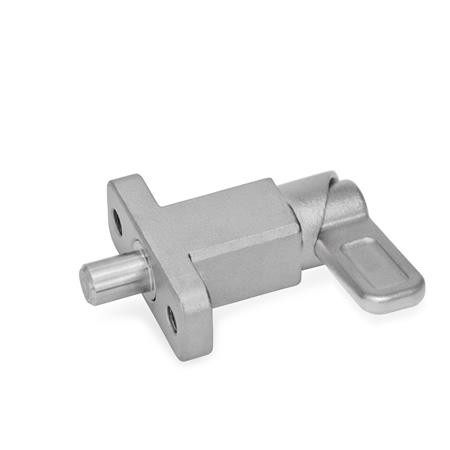

Type B - Latch position parallel to fixing holes

Select Values to Buy:

Tech Spec:



GN722.2 Spring Latch, Flange for Surface Mounting, Stainless Steel

Spring latches GN 722.2 are used when the indexing pin is temporarily required to be retracted. The indexing pin retracts by turning the latch by 180° and a lock notch will hold the latch in both positions.

Spring latches GN722.2 are designed for use in steel construction or in locksmith shops where less precise positioning and locking is normally required. The dimensional tolerances are therefore chosen to ensure that functional safety is guaranteed under dirt exposure and that cost effective production methods are used.

Specification

Guide / Latch - Stainless Steel precision casting A4, weldable, AISI 316

Plunger pin - Stainless Steel AISI 316

Spring - Stainless Steel AISI 316 Ti

RoHS compliant

Select / Deselect Visible Columns
PartCoded1sTypeMateriald2hl1l2l3l4l5mA/FtSpring load in N initialSpring load in N endMass

GN722.2-8-20-A-A4820AA46.17.5681435374834106.116450.166
GN722.2-8-20-B-A4820BA46.17.5681435374834106.116450.166
GN722.2-10-20-A-A41020AA46.17.5681435374834106.116450.169
GN722.2-10-20-B-A41020BA46.17.5681435374834106.116450.17
GN722.2-12-20-A-A41220AA46.17.5681435374834106.116450.174
GN722.2-12-20-B-A41220BA46.17.5681435374834106.116450.134
GN722.2-14-20-A-A41420AA46.17.5681435374834106.116450.129
GN722.2-14-20-B-A41420BA46.17.5681435374834106.116450.17
