GN822.8 Mini Indexing Plunger, Zinc Die Casting, Plastic Knob

images/300/GN822.8-Mini-indexing-plungers-Zinc-die-casting-Plastic-knob-sketch_H.png

Type B - without Rest Position

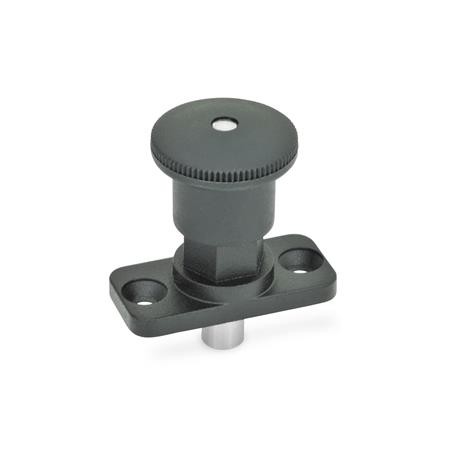

Type C - with Rest Position

Select Values to Buy:

Tech Spec:



GN 822.8 Mini Indexing Plunger, Zinc Die Casting, Plastic Knob

Mini indexing plungers GN822.8 are notable for their small dimensions. They are mounted by countersunk screws.

These mini indexing plungers offer an affordable alternative to the GN608 and GN608.1 indexing plungers.

In type C, the button can be turned by 30° after retracting the indexing pin, holding it in the retracted position using the indexing lock.

Specification

Socket - Zinc die casting, plastic coated, black, textured finish.

Plunger - Stainless Steel, AISI 303

Spring - Stainless Steel, AISI 301

Knob - Plastic (Polyamide PA), black, matt, non-removable

Aslo available with red knob on request

RoHS compliant

Select / Deselect Visible Columns
PartCoded1l1TypeMaterialb1b2d2d3d4kl2l3l4l5
Stroke
Spring load
in N
initial
Spring load
in N
end
Mass

GN822.8-4-5-B45BZD35158214.32520.52454120.023
GN822.8-4-5-C45CZD35158214.32520.52454120.022
GN822.8-4-10-B410BZD35158214.32520.52454120.023
GN822.8-4-10-C410CZD35158214.32520.52454120.023
GN822.8-5-6-B56BZD401810254.33025.52.5466160.039
GN822.8-5-6-C56CZD401810254.33025.52.5466160.038
GN822.8-5-12-B512BZD401810254.33025.52.5466160.04
GN822.8-5-12-C512CZD401810254.33025.52.5466160.039
GN822.8-6-6-B66BZD401810254.33025.52.5466160.039
GN822.8-6-6-C66CZD401810254.33025.52.5466160.038
GN822.8-6-12-B612BZD401810254.33025.52.5466160.041
GN822.8-6-12-C612CZD401810254.33025.52.5466160.039
GN822.8-8-10-B810BZD502314335.338352.551011350.094
GN822.8-8-10-C810CZD502314335.338352.551011350.093
GN822.8-8-20-B820BZD502314335.338352.551011350.098
GN822.8-8-20-C820CZD502314335.338352.551011350.097
GN822.8-10-10-B1010BZD502314335.338352.551011350.096
GN822.8-10-10-C1010CZD502314335.338352.551011350.095
GN822.8-10-20-B1020BZD502314335.338352.551011350.08
GN822.8-10-20-C1020CZD502314335.338352.551011350.101
