GN822.9 Mini Indexing Plungers Stainless Steel GN 822.9 822-9 GN822-9 GN 822-9

Standard Machine Elements > Indexing Plungers, Locking pins & Spring Plungers
< Previous Product Next Product >

GN822.9 Mini Indexing Plunger, Stainless Steel, Optional Rest

 images/300/GN822.9_Stainless_Steel_Mini_Indexing_Plunger_H.png

Type B - without rest position, with plastic knob

Type BN - without rest position, with stainless steel knob

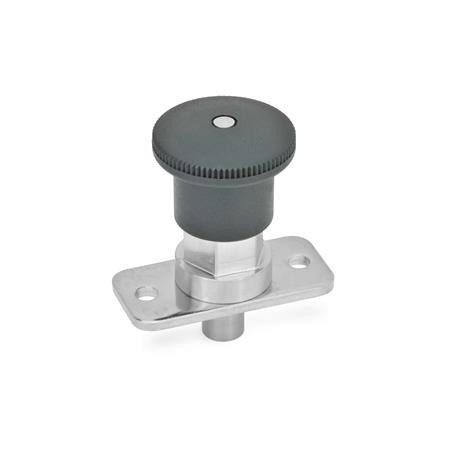

Type C - with rest position

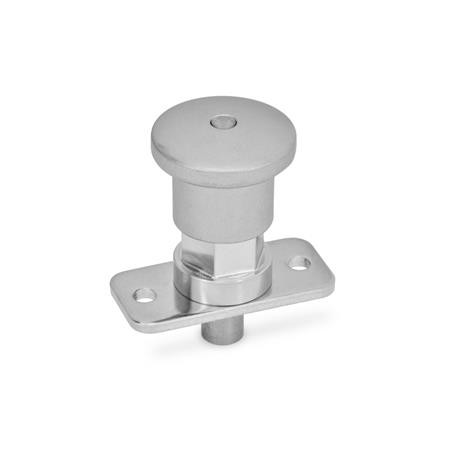

Type CN - with rest position, with stainless steel knob

Select Values to Buy:

Tech Spec:



GN 822.9 Mini Indexing Plunger, Stainless Steel, Optional Rest

Stainless steel mini indexing plungers GN822.9 are notable for their small dimensions, which are ideal in restricted spaces. They are mounted by countersunk screws.

These stainless steel mini indexing plungers present an affordable alternative to GN608.5 and GN608.6 stainless steel indexing plungers.

In types C and CN, the button can be turned by 30° after retracting the indexing pin, holding it in the retraced position using the indexing lock.

Specification

Socket - Stainless Steel AISI 304

Plunger - Stainless Steel AISI 303

Spring - Stainless Steel AISI 301

Knob type B and C - Plastic (Polyamide PA), black, matt, not removable.

Knob type BN and CN - AISI CF-8, matt, blasted, not removable

RoHS compliant

Select / Deselect Visible Columns
PartCoded1 l1Typeb1b2d2d3d4kl2l3l4l5 (Stroke)Spring load in N (Initial)EndMass

GN822.9-4-5-B45B35158214,32520,52254120.023
GN822.9-4-5-BN45BN35158214,32520,52254120.037
GN822.9-4-5-C45C35158214,32520,52254120.023
GN822.9-4-5-CN45CN35158214,32520,52254120.037
GN822.9-4-10-B410B35158214,32520,52254120.023
GN822.9-4-10-BN410BN35158214,32520,52254120.037
GN822.9-4-10-C410C35158214,32520,52254120.024
GN822.9-4-10-CN410CN35158214,32520,52254120.037
GN822.9-5-6-B56B401810254,33025,52,5266160.04
GN822.9-5-6-BN56BN401810254,33025,52,5266160.064
GN822.9-5-6-C56C401810254,33025,52,5266160.04
GN822.9-5-6-CN56CN401810254,33025,52,5266160.064
GN822.9-5-12-B512B401810254,33025,52,5266160.041
GN822.9-5-12-BN512BN401810254,33025,52,5266160.065
GN822.9-5-12-C512C401810254,33025,52,5266160.408
GN822.9-5-12-CN512CN401810254,33025,52,5266160.065
GN822.9-6-6-B66B401810254,33025,52,5266160.04
GN822.9-6-6-BN66BN401810254,33025,52,5266160.065
GN822.9-6-6-C66C401810254,33025,52,5266160.04
GN822.9-6-6-CN66CN401810254,33025,52,5266160.047
GN822.9-6-12-B612B401810254,33025,52,5266160.042
GN822.9-6-12-BN612BN401810254,33025,52,5266160.066
GN822.9-6-12-C612C401810254,33025,52,5266160.042
GN822.9-6-12-CN612CN401810254,33025,52,5266160.066
GN822.9-8-10-B810B502314335,338352,531011350.1
GN822.9-8-10-BN810BN502314335,338352,531011350.146
GN822.9-8-10-C810C502314335,338352,531011350
GN822.9-8-10-CN810CN502314335,338352,531011350.146
GN822.9-8-20-B820B502314335,338352,531011350.105
GN822.9-8-20-BN820BN502314335,338352,531011350.15
GN822.9-8-20-C820C502314335,338352,531011350
GN822.9-8-20-CN820CN502314335,338352,531011350.15
GN822.9-10-10-B1010B502314335,338352,531011350.103
GN822.9-10-10-BN1010BN502314335,338352,531011350.149
GN822.9-10-10-C1010C502314335,338352,531011350
GN822.9-10-10-CN1010CN502314335,338352,531011350.148
GN822.9-10-20-B1020B502314335,338352,531011350.109
GN822.9-10-20-BN1020BN502314335,338352,531011350.155
GN822.9-10-20-C1020C502314335,338352,531011350
GN822.9-10-20-CN1020CN502314335,338352,531011350.154
