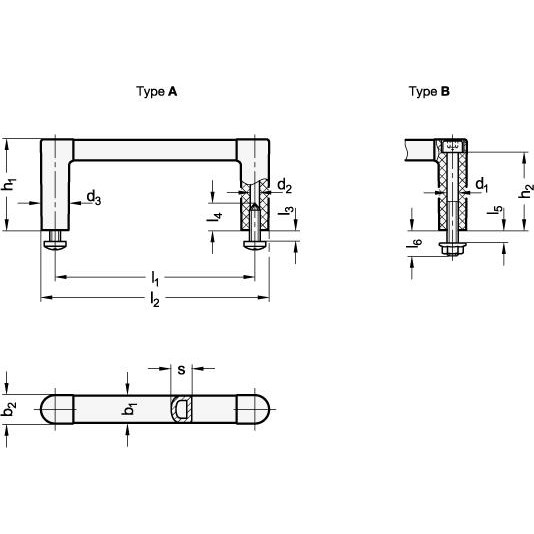

Type A - Mounting from the back (Self-tapping screws)
Type B - Mounting from the operator's side
GN423 Cabinet U Handle, Aluminium And Reinforced Plasstic
The dimensions of these U shape handles, GN 423, have been designed to match a 19" rack and enclosure layout, which are commonly used in the telecommunication, computing, audio, video, and entertainment industries.
The values of the height unit HE given in the table refer to the corresponding front panel heights of the housings.
Handle bar and handle shanks are interconnected via a plug-type connection, with the result that special lengths can be easily created.
Fixing screws are included in the set, so the handles are easily and economically mounted.
We are pleased to announce that these handles have now received the prestigious iF Product Design Award 2014 an award for outstanding and pioneering design.
The iF Product Design Award - Truly useful - a product that succeeds here has thoroughly proven its superior value.
Handle bar - Aluminium
Handle shanks - Plastic (Polyamide PA), glass fibre reinforced, temperature resistant up to 130°C.
Handle bar - anodized, natural colour ELS.
Handle shanks - black, matt.
Handle bar - anodized, natural colour ELG.
Handle shanks - light grey, matt.
Socket cap screws DIN912-M5-45 - Steel zinc plated, black.
Flange nuts DIN1661-M5 - Steel, zinc plated, blue passivated.
Self-tapping screws ISO7049 - Steel zinc plated ST4,8-19
