GN426.5 Cabinet U Shape Handle, Stainless Steel



images/300/GN426.5_Cabinet_U_handles_diagram_H.png

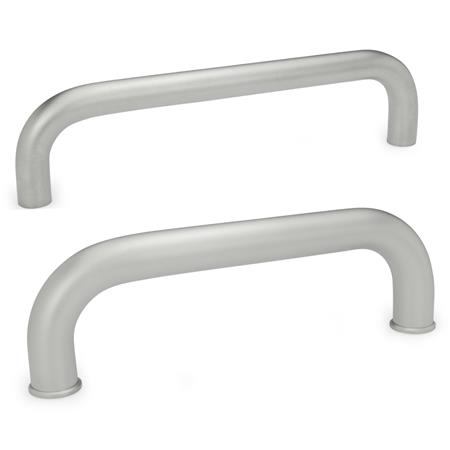

Type A - mounting from the back (threaded blind bore).

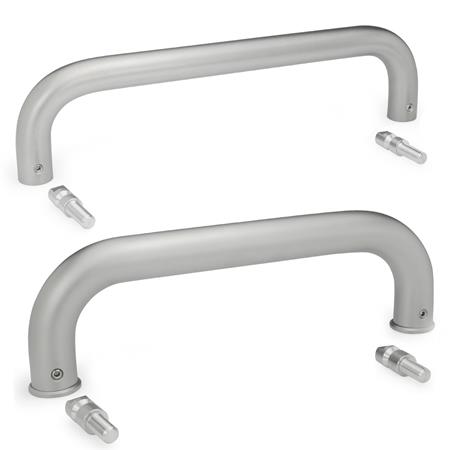

Type B - mounting from the operator's side.

Select Values to Buy:

Tech Spec:



GN426.5 Cabinet U handle, stainless steel.

These stainless steel cabinet U handles are a popular and versatile design. They can be mounted from the back (type A) as well as from the operators side (type B). In this case the stud is first screwed in from the machine side and then the handle is pushed on and secured with the grub screw.

Both mounting methods allow the mounting of a pair of handles in opposite positions. This method could be used e.g. on doors (double handle), and would be ideal in such applications as sliding doors. In general, a mounting stud with special length l4 might be required.

The manufacturing process (bending) allows the production of special lengths in relatively small quantities.

Specification

Stainless Steel, AISI 304, matt shot-blasted

d1 = 20: Solid material, d1 = 28: Tube-Ø 28 x 2

Threaded bush / Mounting stud - Stainless Steel AISI 303

Grub screw (Type B)
d1= 20: DIN 914-M5-6-NI, d1= 28: DIN 914-M6-8-NI

RoHS compliant

Select / Deselect Visible Columns
PartCoded1l1Typed2d3hl2rt1t2MaterialMass

GN426.5-20-200-A20200AM8~68202215~NI0.7
GN426.5-20-200-B20200BM8~68202215~NI0.706
GN426.5-20-250-A20250AM8~68202215~NI0.696
GN426.5-20-250-B20250BM8~68202215~NI0.829
GN426.5-20-300-A20300AM8~68202215~NI0.9
GN426.5-20-300-B20300BM8~68202215~NI0.957
GN426.5-20-350-A20350AM8~68202215~NI1.08
GN426.5-20-350-B20350BM8~68202215~NI1.086
GN426.5-28-250-A28250AM1032902032~17NI0.587
GN426.5-28-250-B28250BM1032902032~17NI0.56
GN426.5-28-300-A28300AM1032902032~17NI0.58
GN426.5-28-300-B28300BM1032902032~17NI0.69
GN426.5-28-350-A28350AM1032902032~17NI0.68
GN426.5-28-350-B28350BM1032902032~17NI0.72
GN426.5-28-400-A28400AM1032902032~17NI0.729
GN426.5-28-400-B28400BM1032902032~17NI0.82
