GN430 Ledge Handle for Safety Doors, Drawers & Guards

CAD Viewer Technical Data

Series Selector

CAD Viewer Technical Data

Product Description

GN430 Ledge Handle for Safety Doors, Drawers & Guards

These ledge handles are ideal for use with swivel or sliding protective safety doors. Also suitable for use as drawer handles, they have a clean, modern design.

The screw channel for screw sizes M6 (extruded aluminium) allows an optional number of fixing screws in any position within the dimension l2. The minimum screw-in depth of 10mm in the handle must be maintained.

The aluminium profile section is available in any length on request; the end caps are also available individually, again on request. Special lengths can be manufactured from relatively small quantities upwards on request.

Specification

Aluminium - plastic coated, black, RAL 9005, textured finish, SW. Anodized, natural colour EL.

End caps - plastic, Technopolymer (Polyamide PA), dark grey.

Application Example

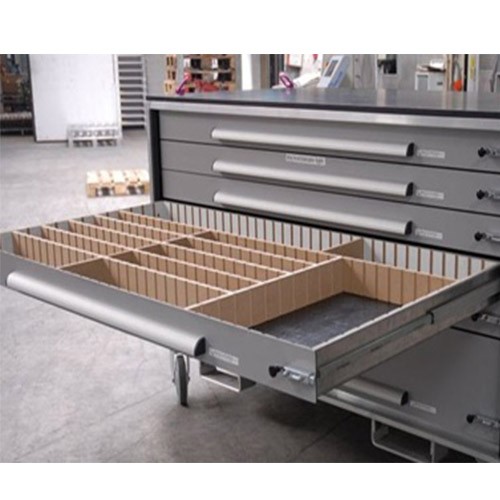

In this example, ledge handles GN430 have been used on these workshop storage drawers.
