Please select desired options to reveal part number, price and availability
Options
Type D0 - Without rubber underlay
Type D1 - With rubber underlay, clipped on, black

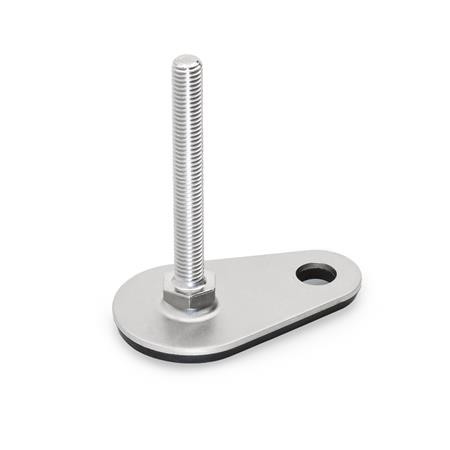

Type D3 - With rubber underlay, vulcanised, black

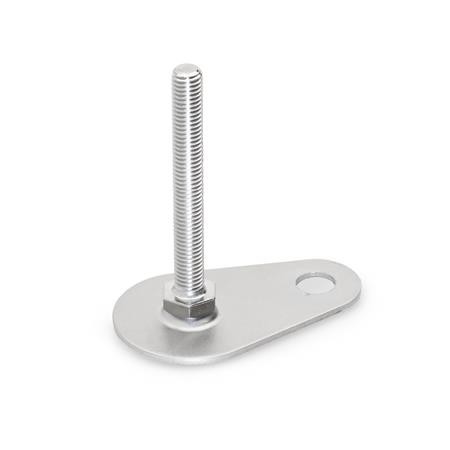

Version S - Without nut, external hexagon at the bottom

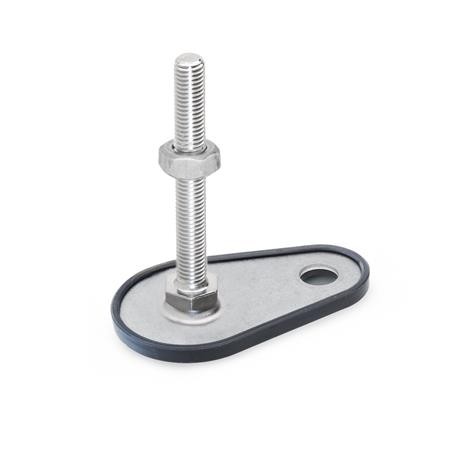

Version SK - With nut, external hexagon at the bottom

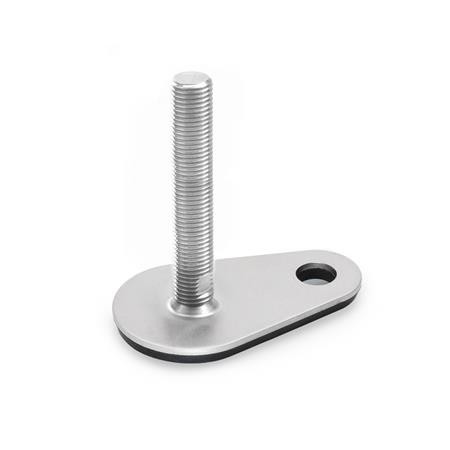

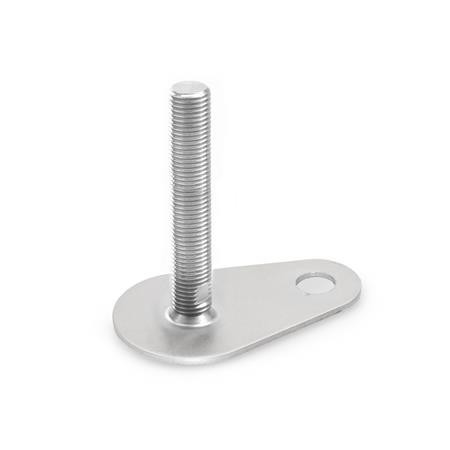

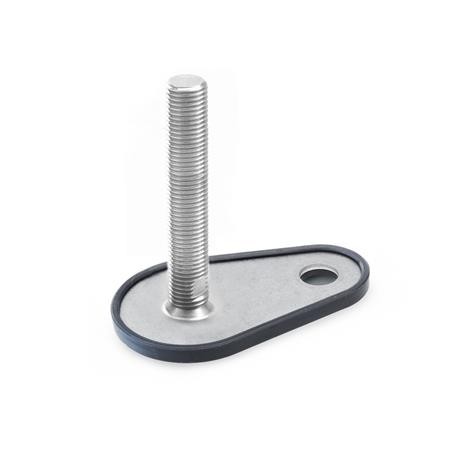

Version T - Without nut, wrench flat at the bottom

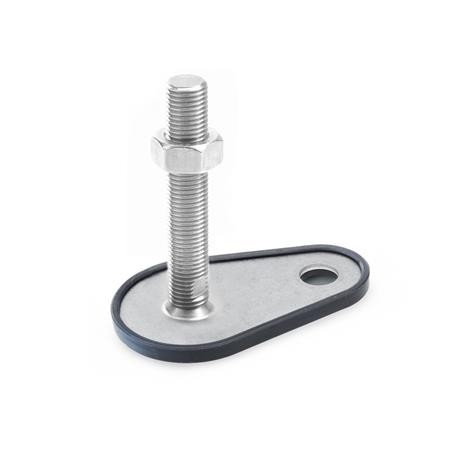

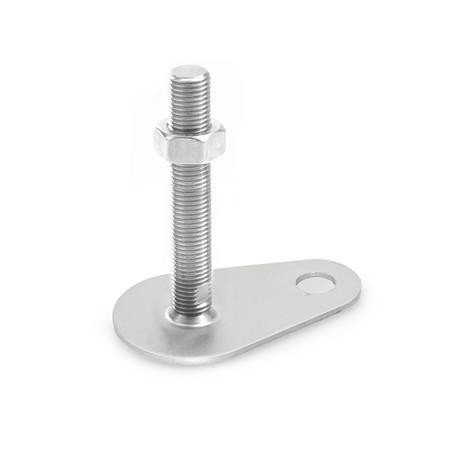

Version TK - With nut, wrench flat at the bottom

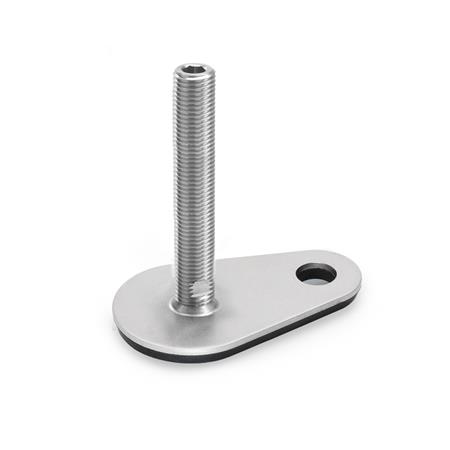

Version U - Without nut, hexagon socket at the top, wrench flat at the bottom

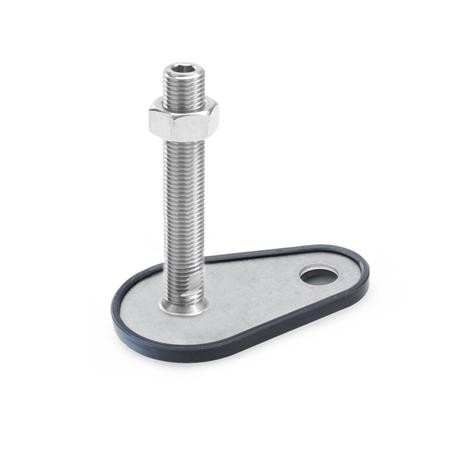

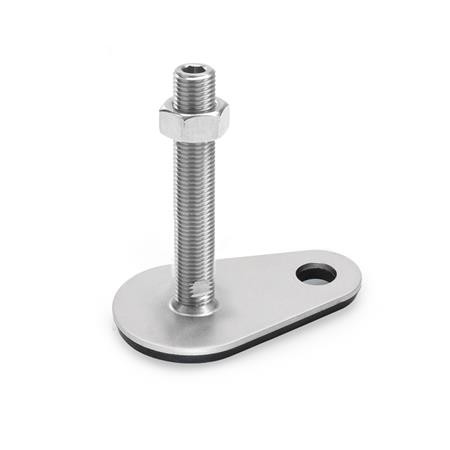

Version UK - With nut, hexagon socket at the top, wrench flat at the bottom

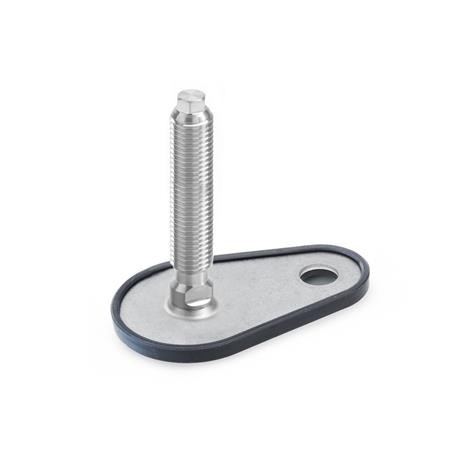

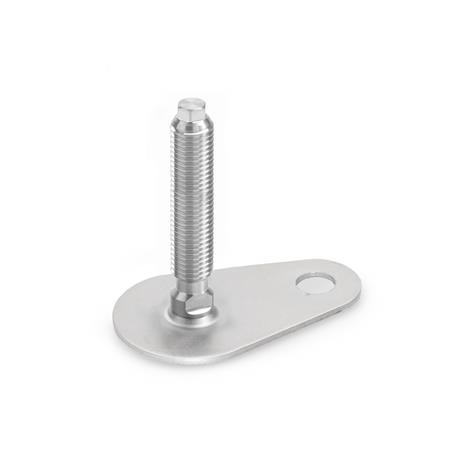

Version V - Without nut, external hexagon at the top, wrench flat at the bottom

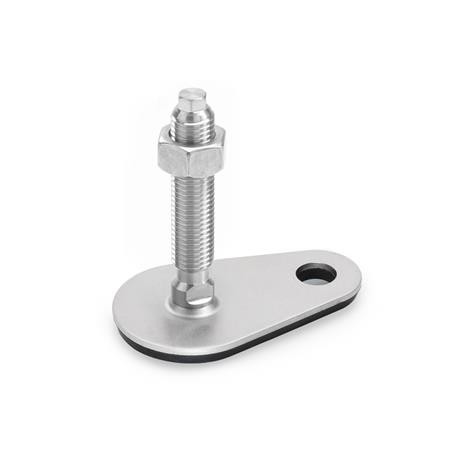

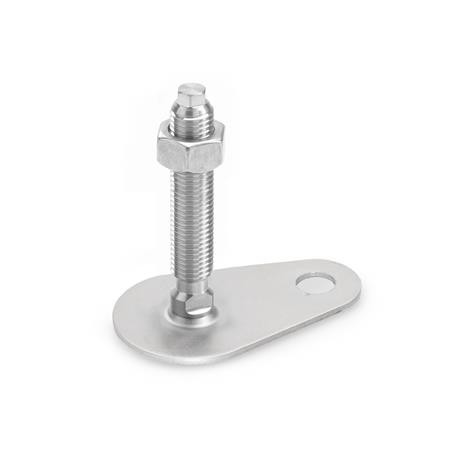

Version VK - With nut, external hexagon at the top, wrench flat at the bottom

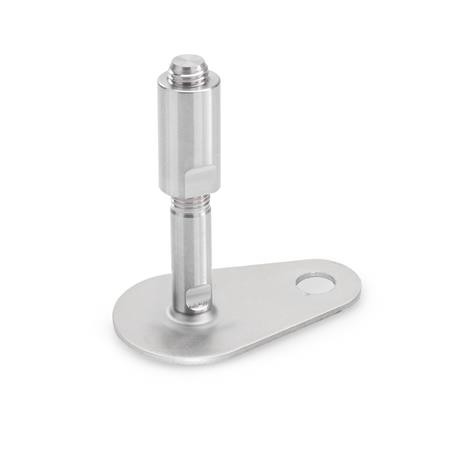

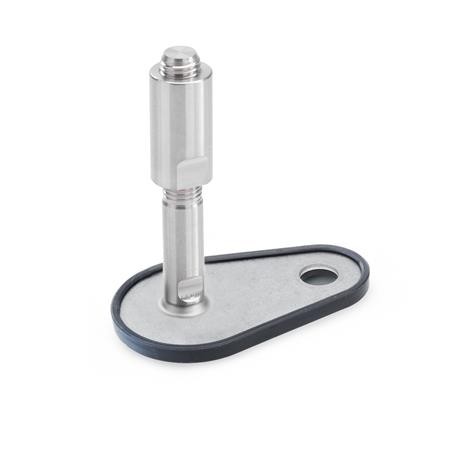

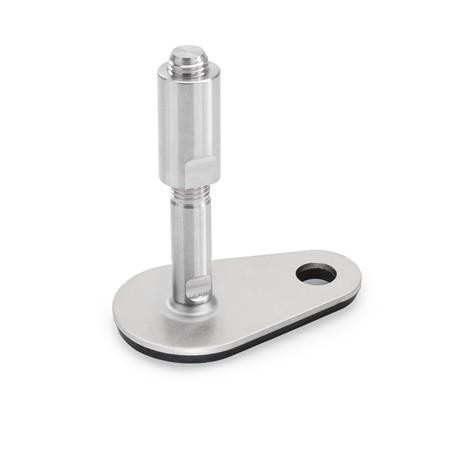

Version W - With adjustable sleeve, covered thread, wrench flat at the bottom

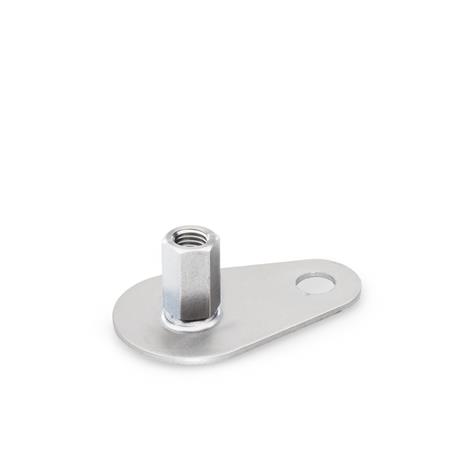

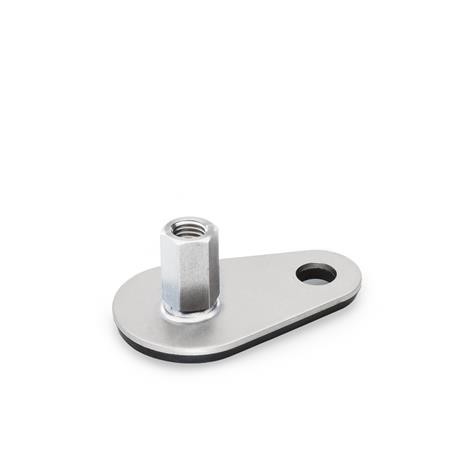

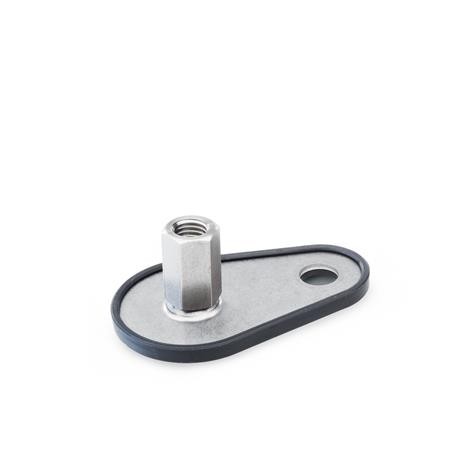

Version X - External hexagon, internal thread
Product Description
GN43 Levelling Feet with Mounting Lug, Stainless Steel
GN 43 Stainless steel levelling feet are for use in aggressive, challenging environments. The range of combinations of base plates and adjustable spindle versions allows these levelling feet to be used in every situation.
The levelling feet can be screwed to the mounting surface use the fixing lug, which prevents lateral shifting. Moreover, the types with the rubber underlay protect sensitive surfaces.
The levelling feet are supplied fully assembled and are not removable.
Specification
Base plate - Stainless Steel AISI 304 (A2)
Threaded stem - Stainless Steel AISI 303 (A1)
Hexagon nut ISO4032 - Stainless Steel (A2)
Rubber cap - Clipped on, black, Santoprene® (TPE) ≈ 80 Shore A
Rubber underlay - Vulcanized, black, Perbunan® (NBR) 70±5 Shore A
