GN918.7 Clamping Bolt, Downward Clamping, Screw from Operators Side, Stainless Steel

Choose your Part

Please select desired options to reveal part number, price and availability

Options

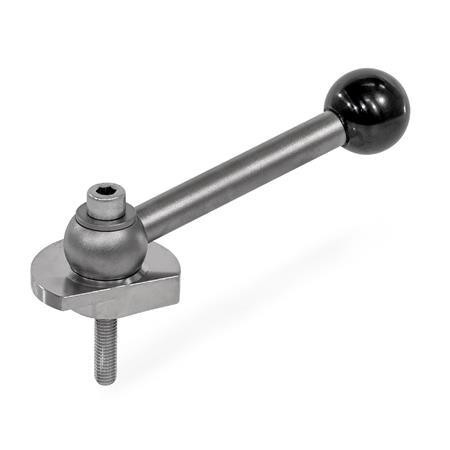

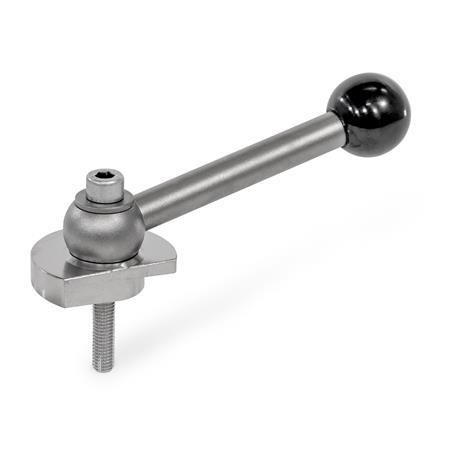

Type KVS - With ball lever, angular (serrations).

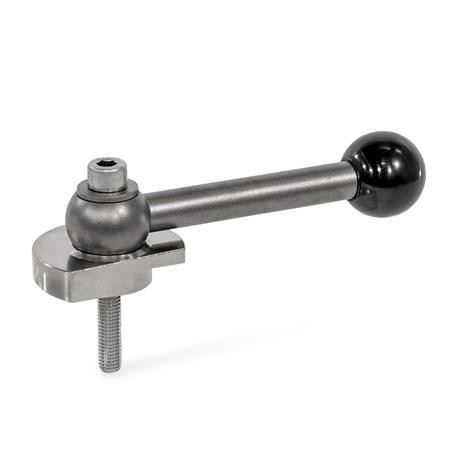

Type GVS - With ball lever, straight (serrations).

Type SKS - With hexagon.

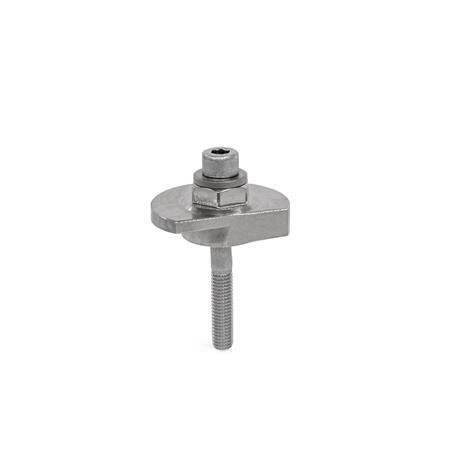

Clamping direction L - Anti-clockwise rotation.

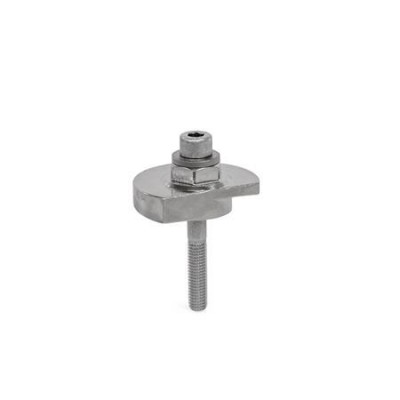

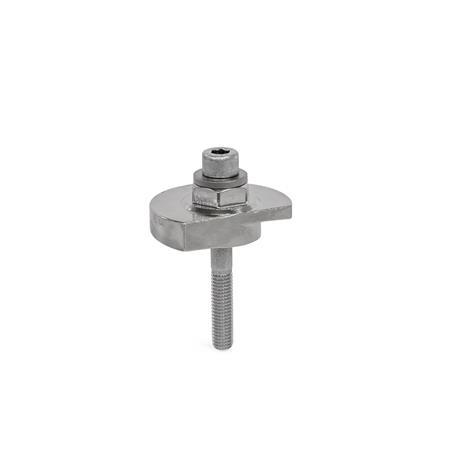

Clamping direction R - Clockwise rotation (drawn version).

Product Description

GN918.7 Clamping Bolt, Stainless Steel, Downward Clamping, Screw from Operators Side, Stainless Steel

Clamping bolts GN 918.7 have a circumferential wedge surface. They allow for rapid and secure clamping and releasing with a relatively large clamping range and with high clamping force. Owing to the small pitch angle (wedge angle), the clamping bolt is self-locking.

Fastening via screw from the operator‘s side bridges a greater clamping range. A sufficiently large screw-in depth t is necessary to safely absorb the screw forces.

The ball levers of types KVS / GVS form a positive connection with the eccentric cam by means of a serration. During assembly, the lever can thus be fixed in a position favourable for clamping or, in the relaxed position, rotated out of the clamping range.

Specification

• Clamping bolt - stainless steel, AISI303, chemically nickel plated
• Guide bushing and thrust washer - stainless steel AISI630, tempered
• Socket cap screw DIN912-A2-70
• Lever - stainless steel AISI303, matte shot blasted
• Ball knob DIN319 - plastic, Duroplast, black, shiny finish
