GN442 Threaded Blanking Plug, Aluminium, Heat Resistant

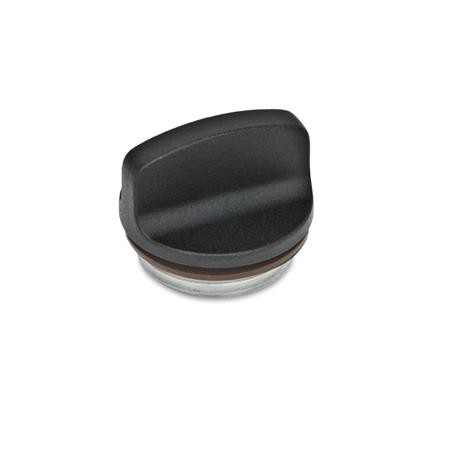

Id No. 1 - without vent drilling.

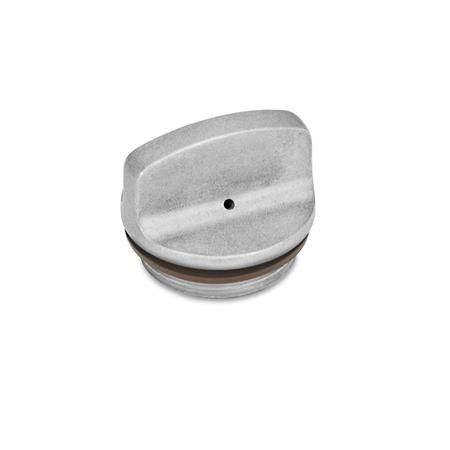

Id No. 2 - with vent drilling.*

Select Values to Buy:

Tech Spec:



GN 442 Threaded Blanking Plug

Threaded plugs GN442 with the external diameter d1 match the screw-in holes for DIN3852 pipe bolt connections.

The sealing ring is embedded in a radial recess on the plane side, which makes the sealing ring captive and cannot be squeezed out during tightening. The sealing is also relatively soft, enhancing the sealing effect on uneven surfaces.

*Note - ID number 2 is not available from stock, and requires a minimum order quantity.

Specification

Aluminium - plastic coated, black SW RAL 9005, textured finish

Blank BL, tumbled, temperature resistant up to 200° C

Sealing ring rubber, FPM (VITON®), identification by off black finish.

On request - Threaded plugs with dipstick.

RoHS compliant

Select / Deselect Visible Columns
PartCodeMateriald1d2Id No.Finishd3d4l1l2l3st min.Mass

GN442-22-M16X1,5-1-SWAL22M16x1,51SW2M526815580.012
GN442-22-M16X1,5-1-BLAL22M16x1,51BL2M526815580.012
GN442-22-M16X1,5-2-SWAL22M16x1,52SW2M526815580.012
GN442-22-M16X1,5-2-BLAL22M16x1,52BL2M526815580.012
GN442-22-G3/8-1-SWAL22G3/81SW2M526815580.012
GN442-22-G3/8-1-BLAL22G3/81BL2M526815580.012
GN442-22-G3/8-2-SWAL22G3/82SW2M526815580.012
GN442-22-G3/8-2-BLAL22G3/82BL2M526815580.012
GN442-26-M20X1,5-1-SWAL26M20x1,51SW2M527.58.516580.017
GN442-26-M20X1,5-1-BLAL26M20x1,51BL2M527.58.516580.017
GN442-26-M20X1,5-2-SWAL26M20x1,52SW2M527.58.516580.017
GN442-26-M20X1,5-2-BLAL26M20x1,52BL2M527.58.516580.017
GN442-26-G1/2-1-SWAL26G1/21SW2M527.58.516580.017
GN442-26-G1/2-1-BLAL26G1/21BL2M527.58.516580.017
GN442-26-G1/2-2-SWAL26G1/22SW2M527.58.516580.017
GN442-26-G1/2-2-BLAL26G1/22BL2M527.58.516580.017
GN442-32-M26X1,5-1-SWAL32M26x1,51SW2M529917680.027
GN442-32-M26X1,5-1-BLAL32M26x1,51BL2M529917680.027
GN442-32-M26X1,5-2-SWAL32M26x1,52SW2M529917680.027
GN442-32-M26X1,5-2-BLAL32M26x1,52BL2M529917680.027
GN442-32-G3/4-1-SWAL32G3/41SW2M529917680.027
GN442-32-G3/4-1-BLAL32G3/41BL2M529917680.027
GN442-32-G3/4-2-SWAL32G3/42SW2M529917680.027
GN442-32-G3/4-2-BLAL32G3/42BL2M529917680.027
GN442-40-G1-1-SWAL40G11SW2M532.51118780.048
GN442-40-G1-1-BLAL40G11BL2M532.51118780.048
GN442-40-G1-2-SWAL40G12SW2M532.51118780.048
GN442-40-G1-2-BLAL40G12BL2M532.51118780.048
