GN472.5 Safety Crank Handle, Retractable Handle, Stainless Steel Mechanism

CloseNextPrevious



CloseNextPrevious

GN472.5: Safety Cranked Handle
Colour: SR - Silver, Textured Finish



CloseNextPrevious

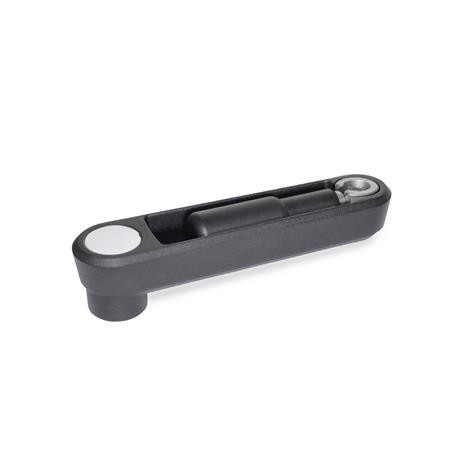

GN472.5: Safety Cranked Handle
Colour: SW - Black, Textured Finish



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type B - Round Bore (d1)

Type V - Square (s)

CAD Viewer Technical Data

Product Description

GN472.5 Safety Crank Handle with Retractable Handle and Stainless Steel Mechanism

These GN 472.5 cranked handles with retractable handpieces are modern, attractive and meet all the demands of industrial designers.

They are ideal for applications where the handpiece must not protrude, such as where there is a risk of the handle catching in clothing or in other controls.

The handle is pulled out of its taper seating toward the arrow and then tilted. The handpiece is locked in a tapered bore in the operating position. A compression spring locks the handle firmly in both end positions. In the folded away position, it fits neatly into a recess in the arm of the handle. When folding, it will automatically snap back into this recess. When folded out, it automatically re-engages.

Specification



Related Series
