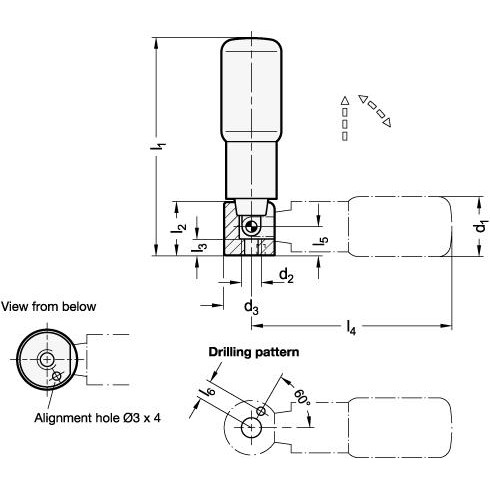

GN798.5 Retractable Handle, Hold in 2 Positions, Stainless Steel / Plastic

Tech Spec:

GN798.5 Retractable Handle, Hold in 2 Positions, Stainless Steel / Plastic

These stainless steel retractable handles have a stepped shape consisting of two cylinders which gives the operator a better grip, especially when pulling the handle out from its locked position before it can be folded back into the rest position.

They are suitable when the handle must be withdrawn during automatic operations. The handle is pulled out of its taper seating in the direction of the arrow and then tilted. A compression spring locks the handle in both end positions.

A positive lock is achieved in the operating position by way of a taper seating.

Specification

Handle - Plastic Technopolymer (Polyamide PA) KT, temperature resistant up to 90° black, matt finish, revolving.

Retractable mechanism - Stainless Steel, AISI 303

RoHS compliant

Also available in steel, GN798.3.

Select / Deselect Visible Columns

Hide	Material	Show
Hide	d1	Show
Hide	d2	Show
Hide	d3	Show
Hide	l1	Show
Hide	l2	Show
Hide	l3	Show
Hide	l4	Show
Hide	l5	Show

PartCode	Material	d1	d2	d3	l1	l2	l3	l4	l5	Mass

GN798.5-KT-16	KT	16	M5	16	58	15	5	52.5	9.5	0.035
GN798.5-KT-18	KT	18	M5	16	72.5	15	5	67	9.5	0.045
GN798.5-KT-22	KT	22	M6	20	80.5	19.5	6	74	10.5	0.084
GN798.5-KT-24	KT	24	M6	20	95.5	19.5	6	89	10.5	0.095
GN798.5-KT-25	KT	25	M6	20	105.5	19.5	6	98.5	10.5	0.11
