GN798.3 Retractable Handles Hold In Both Positions locked automatic operations taper seated folded back

Standard Parts for Clamping & Operating & Machine Fixtures > Knobs & Handles > Retractable Handles
Next Product >

GN798.3 Retractable Handle, Hold In 2 Positions, Plastic, Steel Mechanism

Select Values to Buy:

Tech Spec:



GN798.3 Retractable Handle, Hold In 2 Positions, Plastic, Steel Mechanism

These retractable handles have a stepped shape consisting of two cylinders giving the operator a better grip, especially when pulling the handle out from its locked position before it can be folded back into the rest position.

They are useful when the handle must be withdrawn during automatic operations. The handle is pulled out of its taper seating in the direction of the arrow and then tilted. A compression spring locks the handle in both end positions.

A positive lock is achieved in the operating position by way of a taper seating.

Specification

Handle - Plastic Technopolymer (Polyamide PA) KT, temperature resistant up to 90 C, black, matt finish, revolving.

Retractable mechanism - Steel, blackened

RoHS compliant

Stainless steel variant also available, GN798.5.

Select / Deselect Visible Columns

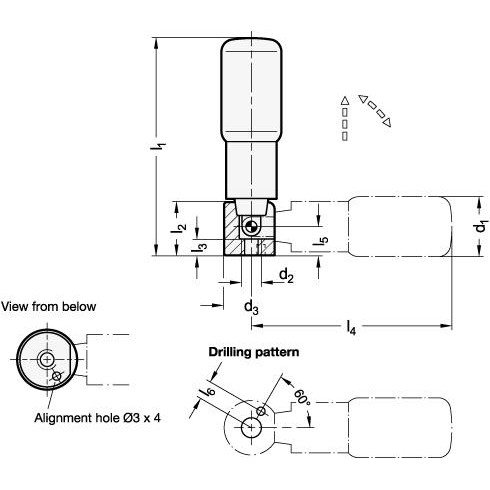

PartCodeMateriald1d2d3l1l2l3l4l5Mass

GN798.3-KT-16KT16M5165815552.59.50.035
GN798.3-KT-18KT18M51672.5155679.50.041
GN798.3-KT-22KT22M62080.519.567410.50.078
GN798.3-KT-24KT24M62095.519.568910.50.095
GN798.3-KT-25KT25M620105.519.5698.510.50.11
