GN474.2 Rail Mounting Clamps, Aluminium, Splittable, with Cross/Parallel Bore

Choose your Part

Please select desired options to reveal part number, price and availability

Options

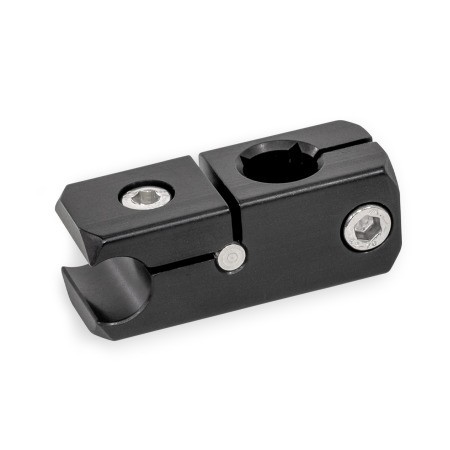

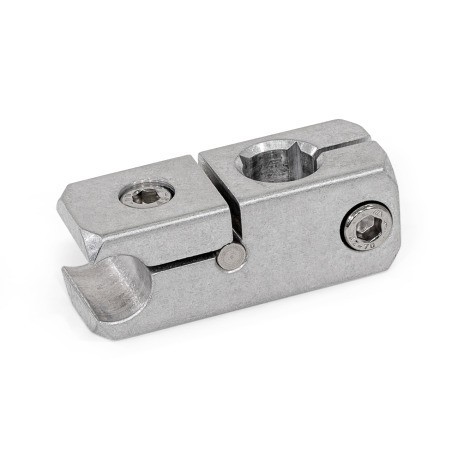

Type Q - with cross hole

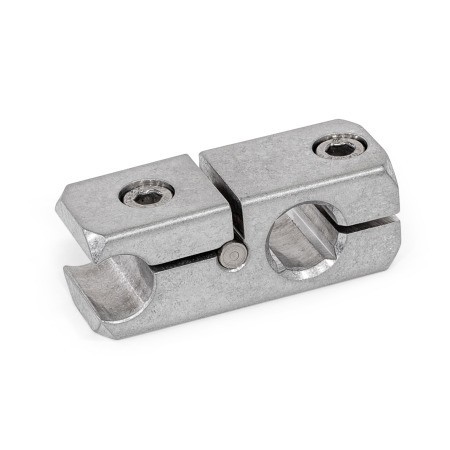

Type P - with parallel bire

Product Description

GN474.2 Rail Mounting Clamps, Aluminium, Splittable, with Cross/Parallel Bore

Rail mounting clamps GN 474.2 connect tubes and rods in parallel or at right angles. They are used for applications such as side guides, where the mounting clamps must not protrude to the side.

In addition, the split clamping point permits subsequent insertion of the mounting clamp into an existing structure and simplifies installation when axial insertion is not possible, such as due to curves.

The sizes with square s also allow the clamping of square rods/tubes.

The standard clamping screw is a socket cap screw with hexagonal socket ISO 4762. It can be replaced by a clamping kit GN511.

Specification

• Mounting clamp - aluminium
  • Matte finish, tumbled MT
  • Anodized, black ELS
• Socket cap screws, ISO 4762 - stainless steel
• Dowel pin ISO 2338 - stainless steel

Accessory

Clamping kits GN511
Stainless steel retaining rods / Retaining tubes GN480.1
