GN522.8 Spoked Handwheels, for Position Indicators GN000.8/GN000.3
CloseNextPreviousGN522.8: Spoked Handwheels, for Position Indicators
Type A Without Handle
CloseNextPreviousGN522.8: Spoked Handwheels, for Position Indicators

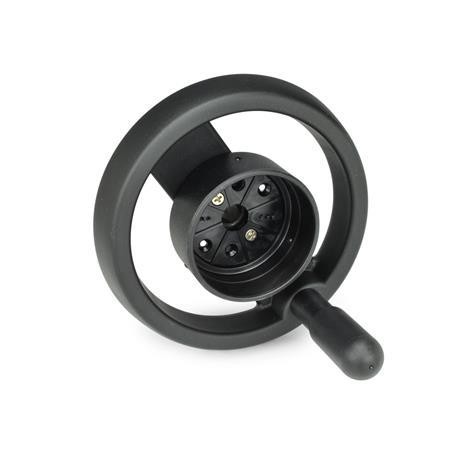

Type B With Handle
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Bore Code B - without keyway
Bore Code K - with keyway
Type A - without Handle
Type D - with Revolving Handle
Product Description
GN522.8 Spoked Handwheels for Position Indicators GN000.8/GN000.3
These GN 522.8 handwheels are similar to spoked handwheels GN 522. They are, however, fitted with housing to accept position indicators GN 000.8 and GN 000.3, and they are provided with a grub screw for fitting to the shaft.
For large adjustments, the hub bore can be provided with a keyway.
The shape of these handwheels does not only meet all demands for modern design but also covers all aspects of an ergonomic angle.
Specification
- Body - Plastic, Technopolymer (Polypropylene PP), Reinforced, shock-resistant, Temperature resistant up to 80 °C, Black, matte finish
- Hub bushing - Steel, blackened
- Threaded bushing brass to accept the revolving handle
- Shiny finish to accept the revolving handle
- Housing for position indicator - Technopolymer (Polyamide PA) glass fiber reinforced
- Revolving handles - Plastic, Technopolymer, black, matte finish
- Grub screw DIN 916 with internal hexagon and serrated point
Accessory
Position indicators GN 000.8 / GN 000.3 are to be ordered separately.
CAD Viewer
Technical Data
