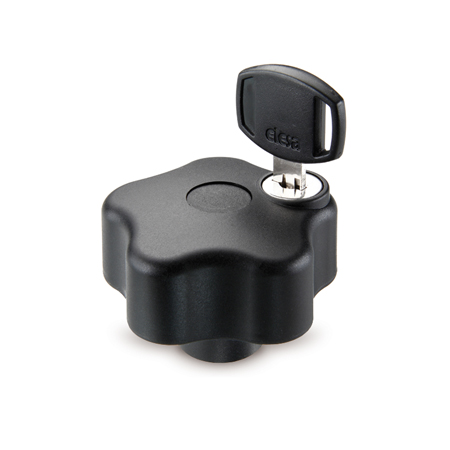

GN5337.9 Lockable Safety Star Knobs
Safety star knobs GN 5337.9 are designed to prevent unauthorised use.
To engage and release, the key must be inserted and turned by 180°, creating a formlock between the handle and the threaded bushing or screw. Turning the key back by 180° will release the connection.
The key can be inserted and removed in both end positions.
Two keys per star knob are included with the delivery.
Specification
Handle - Plastic, Technopolymer (Polyamide PA), glass fibre reinforced, temperature resistant up to 100° C, black, matt
Flange - Technopolymer, with ultrasonically welded handle
Threaded bush - Brass
Lock mechanism - Zinc die casting
Key - Brass, nickel plated, with plastic handle
