GN589.5 Lifting Point, for Welding, Stainless Steel

Choose your Part

Please select desired options to reveal part number, price and availability

Poduct Description

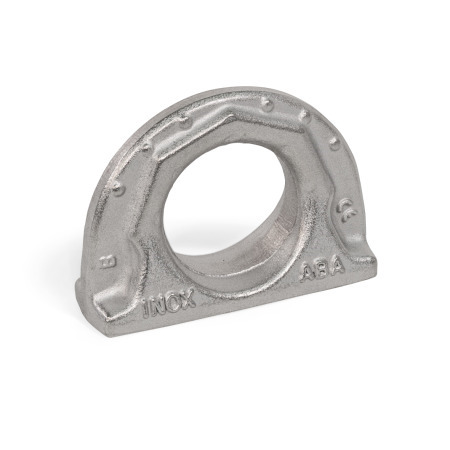

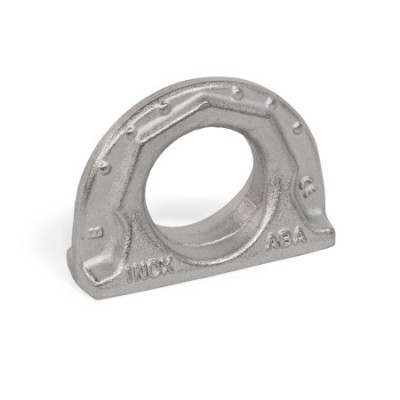

GN589.5 Lifting Point, for Welding, Stainless Steel

Lifting points GN 589.5 are intended for suspending lifting gear and lashing elements and are characterized by a particularly low profile. They are welded e.g. to load attachment points or directly onto the load itself and can absorb loads in any direction.

The nominal load capacity specified in the table is clearly marked on the lifting point. It applies to the least favorable load case of the listed load types.

Lifting points GN589 comply with Mechanical Engineering Directive 2006 / 42 / EG.

Specification

• Forged
• 100% electro magnetic tensile tested to EN 1677
• Passivated by pickling
