GN614.4 Spring Plunger, Press on Type, Stainless Steel

Close Next Previous

Close Next Previous

GN614.4: Spring Plunger
Material (Bolt): NI - Stainless Steel

Close Next Previous

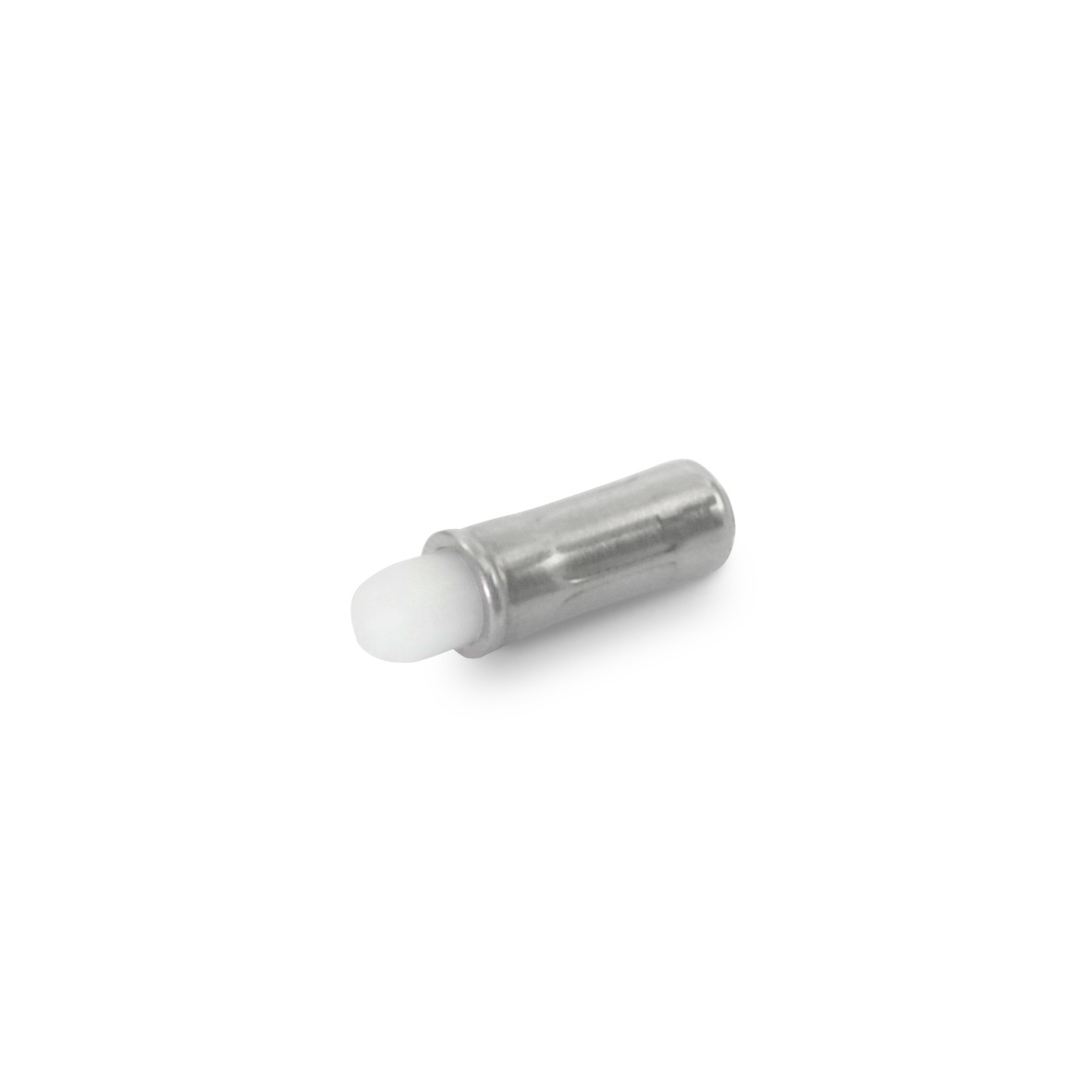

GN614.4: Spring Plunger
Material (Bolt): KU - Plastic

Choose your Part

Please select desired options to reveal part number, price and availability

Product Description

GN614.4 Spring Plunger, Press On Type, Stainless Steel

These spring plungers are used for locking, as pressing and back-off pins, but also as impact dampers.

A tolerance of H7 for the location hole of d1 is recommended.

Specification

Housing - Stainless Steel NI AISI 305

Bolt - Stainless Steel NI AISI 305. Plastic Technopolymer (Polyacetal POM) KU, white, temperature resistant up to +50 C

Spring - Stainless Steel NI AISI 631
