GN6226 Spacer, Stainless Steel, Hygienic Design

Choose your Part

Please select desired options to reveal part number, price and availability

Type

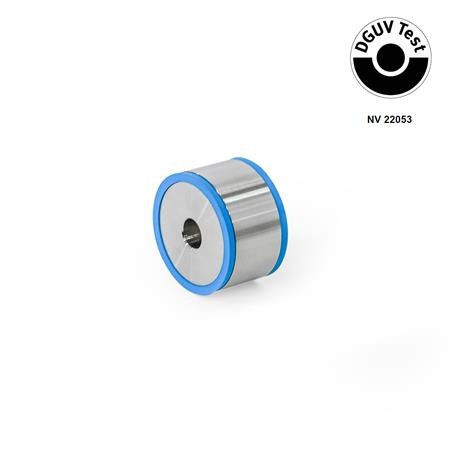

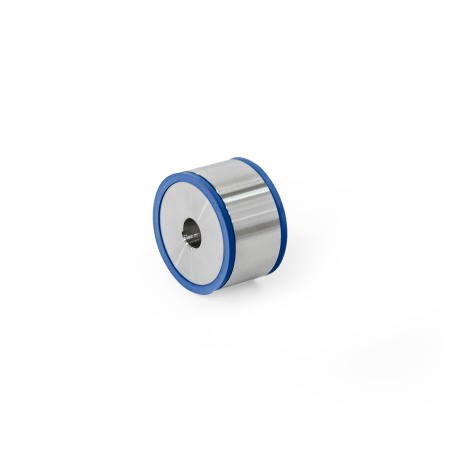

A1 - Through hole

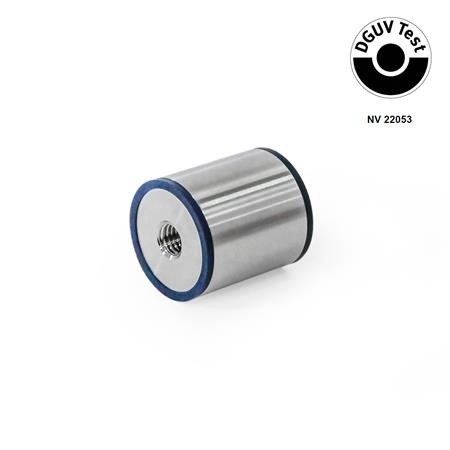

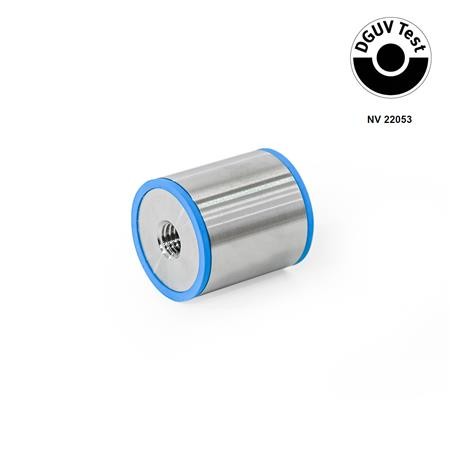

A2 - Through hole with continuous thread

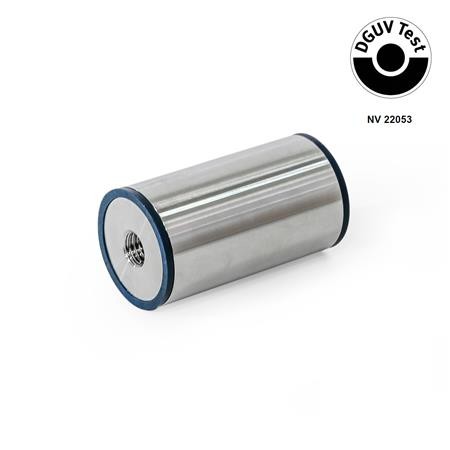

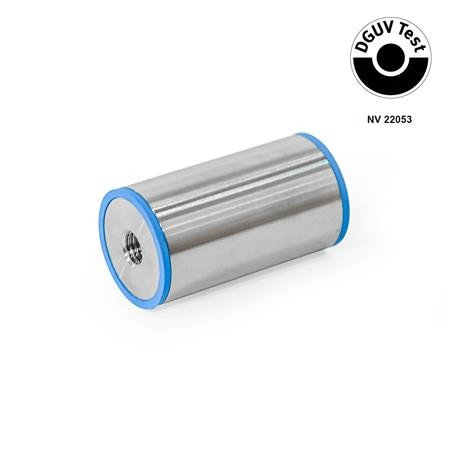

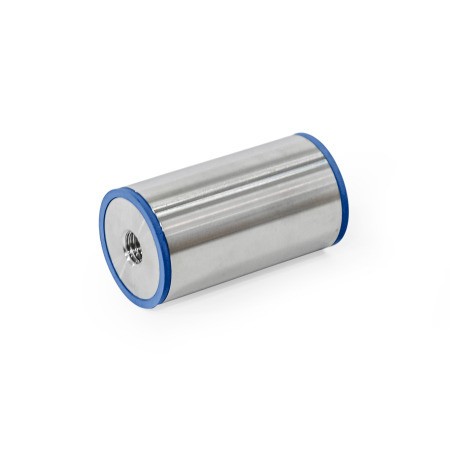

A3 - Through hole with thread on both sides

Product Description

GN6226 Spacers, Stainless Steel, Hygienic Design

Stainless steel spacers GN 6226 are certified according to DGUV Test guidelines and are intended for use in hygiene areas. The sealed mounting surfaces enable fastening without dead spaces. The high quality finish prevents adherence of dirt and facilitates cleaning.

Spacers are used to fasten parts at an offset parallel to their plane of installation. This avoids doubling up on surfaces and leaves space for cleaning. The internal thread can alternatively be used as a through hole by a screw with a smaller thread.

Specification

• Stainless steel AISI 316L, matte finish (Ra < 0.8 µm) MT
• Sealing ring, blue - Hardness 85 ±5 Shore A FDA compliant
• H-NBR - Temperature resistant -25 °C to +150° C, H
• EPDM - Temperature resistant -40°C to +120° C, E
• FKM -  Temperature resistant -5°C to +200° C, E
