GN638 Ball Jointed Levelling Foot, Stainless Steel

Choose your Part

Please select desired options to reveal part number, price and availability

Product Description

GN638 Ball Jointed Levelling Foot, Stainless Steel

Ball jointed levelling feet GN 638 are used for installing and levelling devices or for pressing and clamping.

The stainless steel version can also be used in more aggressive environments thanks to the materials used.

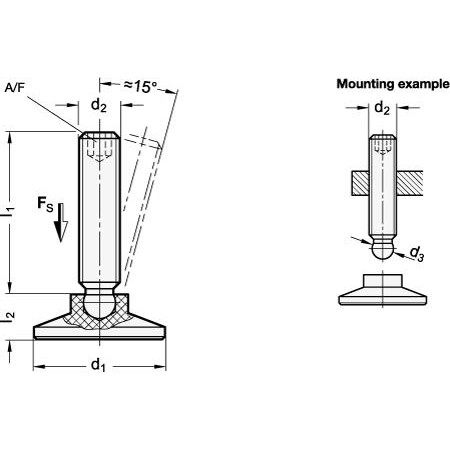

Together with the thrust pad, the ball thrust point forms a ball joint that adapts to mounting surfaces that are uneven or not perpendicular to the screw axis. It also prevents the clamping surface from rotating when the thrust pad is in contact with the clamping surface.

The ball jointed levelling feet are supplied unassembled. The ball thrust point of the threaded stud can be easily pressed into the thrust pad and removed again if needed. The ball diameter d3 is smaller than the core diameter of the thread, with the effect that the threaded stud can be screwed in on the ball side.

The indicated static load serves as a guide value; a corresponding safety factor must be additionally taken into account depending on the application.

Specification

Thrust pad - Stainless Steel NI, AISI 303, O-ring rubber FPM (Viton®), temperature resistant up to 200°C.

Threaded stud - Stainless Steel AISI 303 - Type NV
