GN670 Crank Handle, Plastic
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Type B - Bore
Type V - Square
Product Description

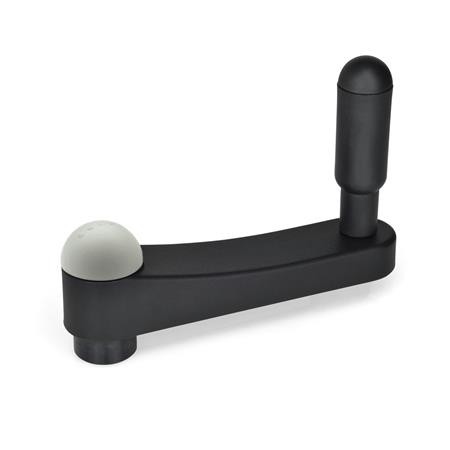

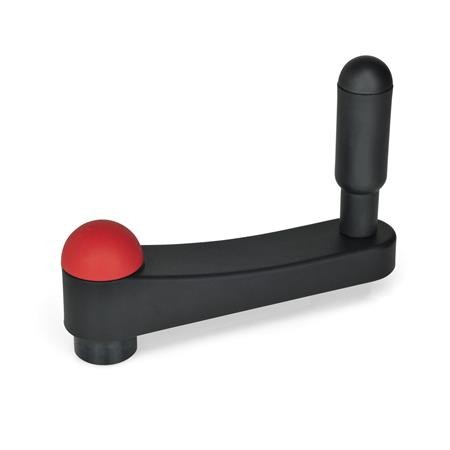

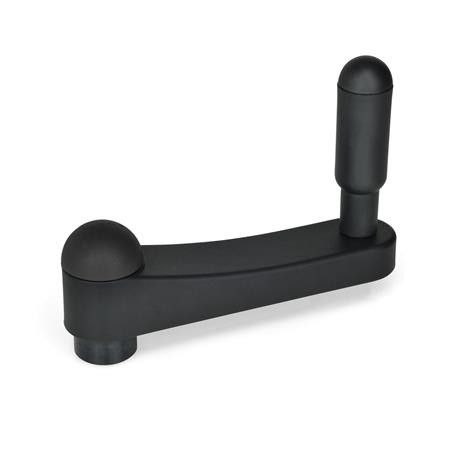

GN670 Plastic Crank Handle
These GN 670 plastic crank handles are part of the Ergostyle product family and as such, have a superior design with comfort in mind. The protruding steel bushing of cranked handles GN670 ensures an accurate bore and square to bore face. It can be retained with a pin or a retaining screw. The link between the cranked handle and shaft can be established either with a keyway or a follower pin. Reinforced plastic for additional strength.
Specification
- Body - Plastic, technopolymer (Polyamide PA) glass fibre reinforced, temperature resistant up to 80°C, black grey similar to RAL 7021, matt finish.
- Hub bushing - Steel, blackened.
- Threaded bushing to accept the revolving handle - Brass
- Revolving handles - Plastic, Technopolymer, black, matt finish.
- Spindle - steel, zinc plated, blue passivated.
- Colour of the cover cap
- Black-grey, RAL 7021, matt finish DSG.
- Orange, RAL 2004, matt finish DOR.
- Grey, RAL 7035, matt finish DGR.
- Yellow, RAL 1021, matt finish DGB.
- Blue, RAL 5024, matt finish DBL.
- Red, RAL 3000, matt finish, DRT.
