GN711.1
Indicator Arrow, Plastic or Stainless Steel, For Rulers
Please select desired options to reveal part number, price and availability
Options

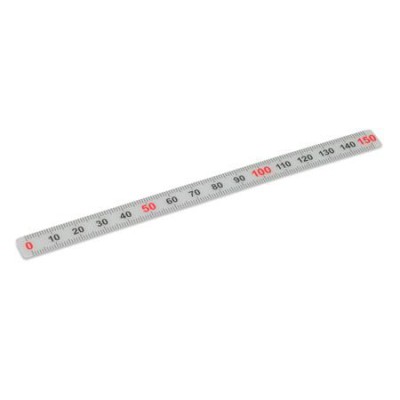

Type W - Figures horizontally arranged (Figure sequence L, M, R)
Type S - Figures vertically arranged (Figure sequence U, M, O)
Product Description
GN711 Plastic or Stainless Steel Ruler with Self-Adhesive Backing
These GN 711 rulers are a convenient measuring device for such applications where consistency, repeatability and accuracy in measuring various lengths and heights in a vertical or horizontal position is important. They are supplied in various number sequences and arrangements.
The position of linear actuator connectors can be easily read from rulers GN 711. With Indicator Arrows GN 711.1, reference points can be marked on rulers or reference positions in machines.
To apply the ruler, remove the protective strip (stainless steel variant) and affix the self-adhesive strip to a clean and dry surface. The marking is printed on the plastic rulers and etched on the stainless steel.
It is ideal for clean room environments, such as in the medical and food industries.
Specification
Accessory
Indicator arrows GN711.1
