GN702
Stop Lock, Zinc Die Cast, Plastic Handle, with Four Indexing Positions
Please select desired options to reveal part number, price and availability
Options
Type A - Mounting with countersunk screw
Product Description

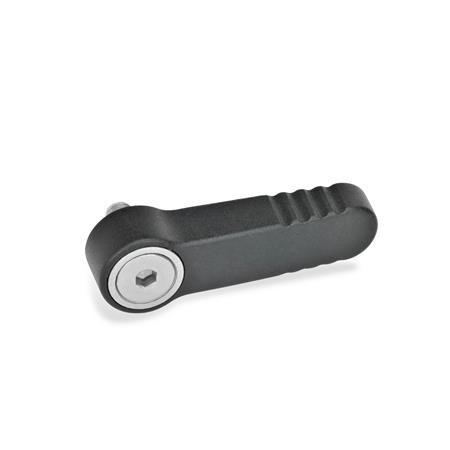

GN720 Stop Lock, Stainless Steel Indexing Mechanism, High Stability
These stop locks may be used as stops and feature a high degree of stability. The ball spring latching mechanism has 4 latching positions, spaced at 90° apart. Thanks to the bolt attachment using a countersunk screw, the latching position is freely selectable.
The bar is solid and may be machined, if required. The countersunk screw is included as part of the set.
Specification
Latch - Zinc die casting ZD, plastic coated, black, RAL 9005, textured finish SW. Silver, RAL 9006, textured finish SR.
Indexing mechanism - Stainless Steel NI
Countersunk screw DIN7991 - Stainless Steel (A2)
