GN724.10 Catches, for Indexing Plungers, with Chamfered Pin, Steel / Stainless Steel

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type A - For indexing plungers / cam action indexing plungers with chamfered pin top / bottom

Type B - For indexing plungers / cam action indexing plungers with chamfered pin left / right/p>

Product Description

GN724.10 Catches, for Indexing Plungers & Cam Indexing Plungers, with Chamfered Pin, Steel / Stainless Steel.

Catches GN 724.10 are combined with spring latches and indexing plungers of series GN724 ff. when the application requires multiple indexing positions or catches.

The orientation of the chamfered pin according to the combination options shown on the standard sheet must be taken into account when selecting the catch.

The slotted holes with hex enable fastening with socket cap screws ISO 4762, hex head screws DIN 931 or hex nuts DIN 934.

Specification

• Precision steel casting

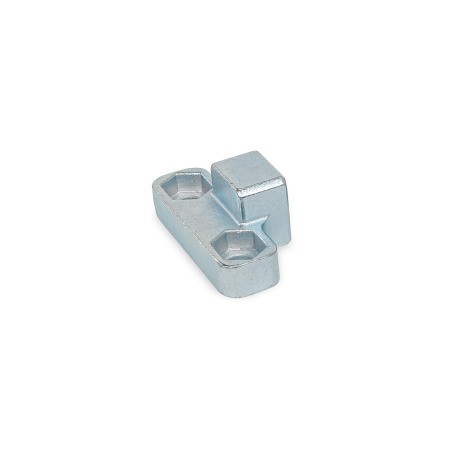

• Zinc plated, blue passivated ZB

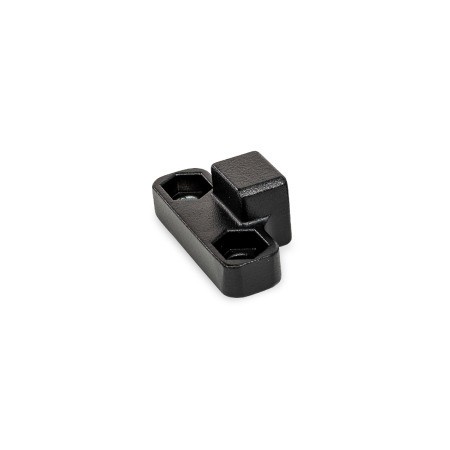

• Zinc plated and powder coated, black, RAL 9005, textured finish SW
• Stainless steel precision casting AISI CF-8 NI
