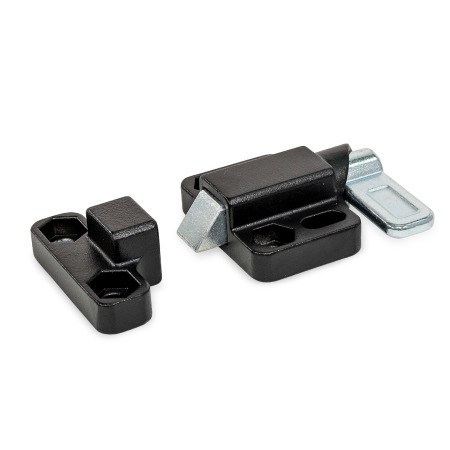

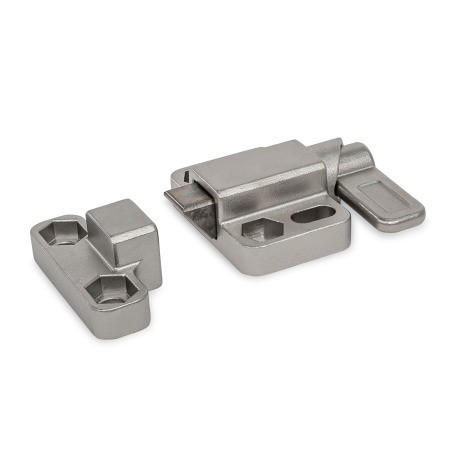

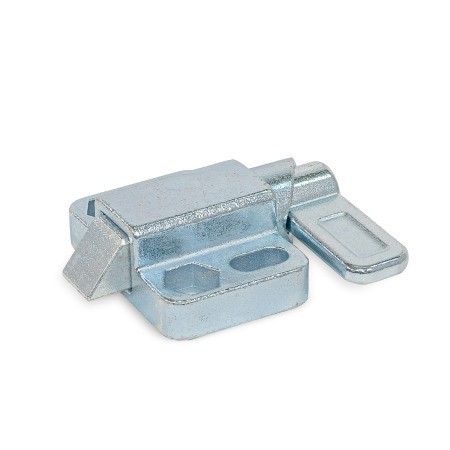

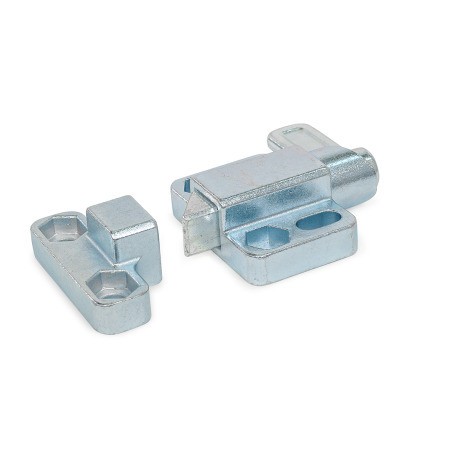

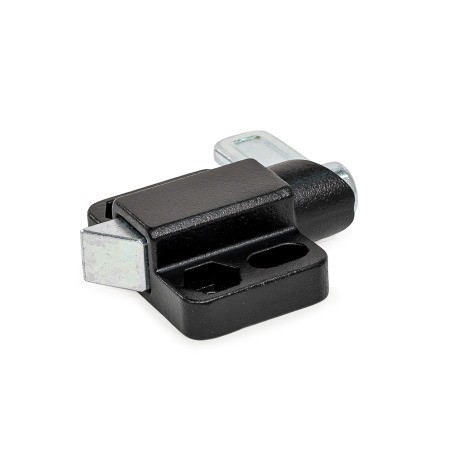

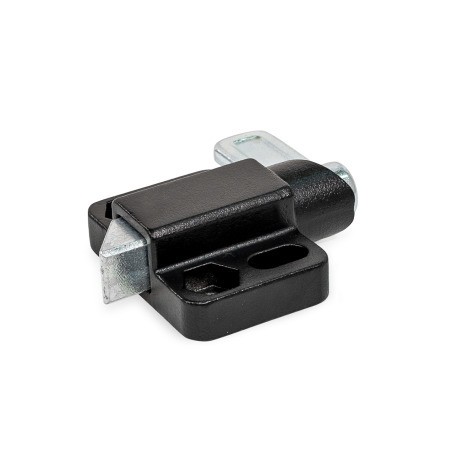

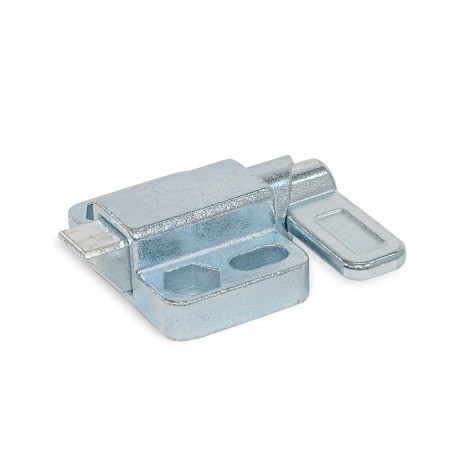

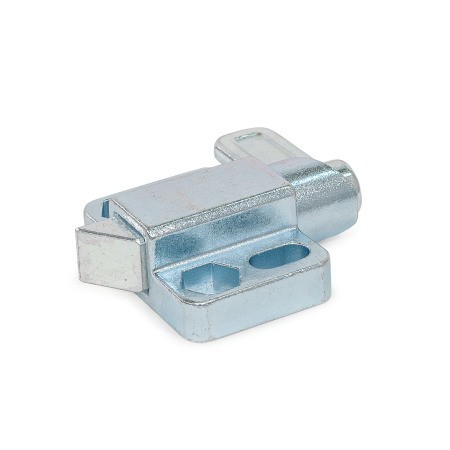

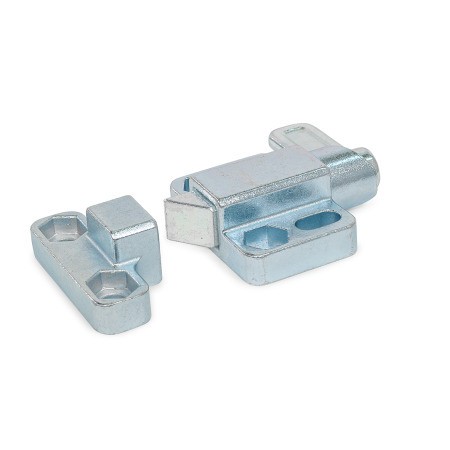

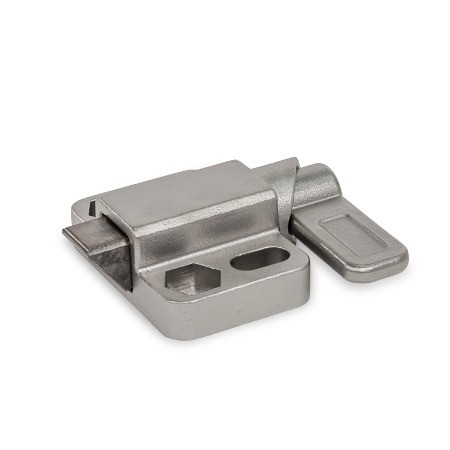

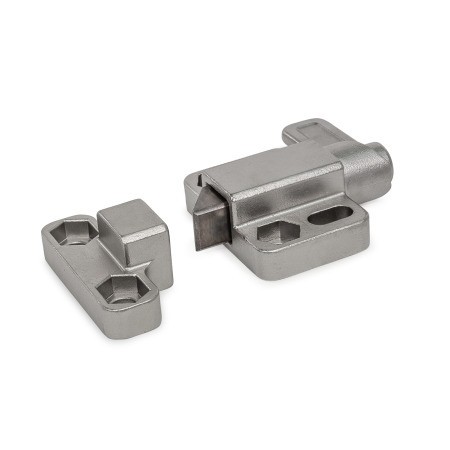

GN724.3 Spring Latches, Steel / Stainless Steel, with Chamfered Pin, with Flange for Surface Mounting

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type L - Left indexing cam

Type R - Right indexing cam

Chamfered pin ID number 1 - Chamfer, top

Chamfered pin ID number 2 - Chamfer, bottom

Chamfered pin ID number 3 - Chamfer, right

Chamfered pin ID number 4 - Chamfer, left

Catch ID number 1 - Without catch

Catch ID number 2 - With catch

Product Description

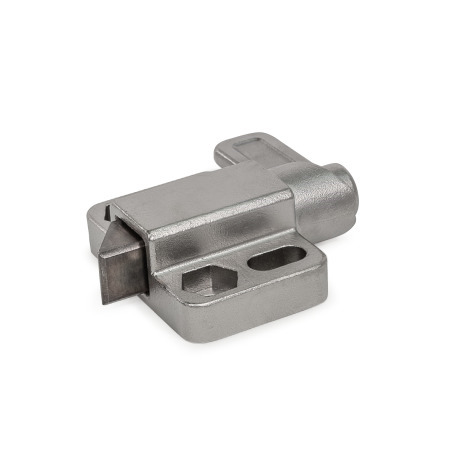

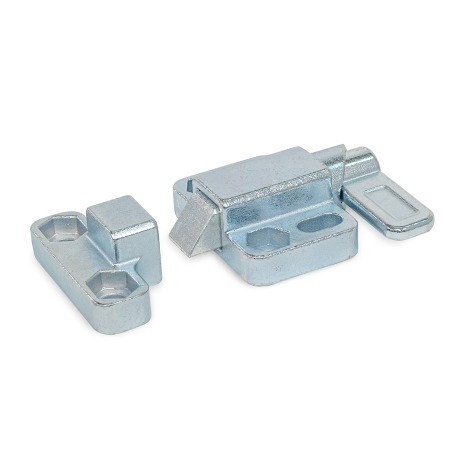

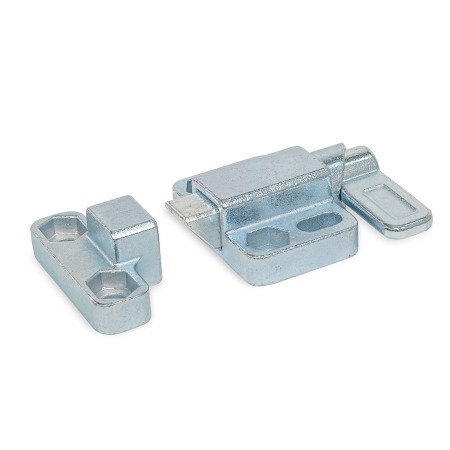

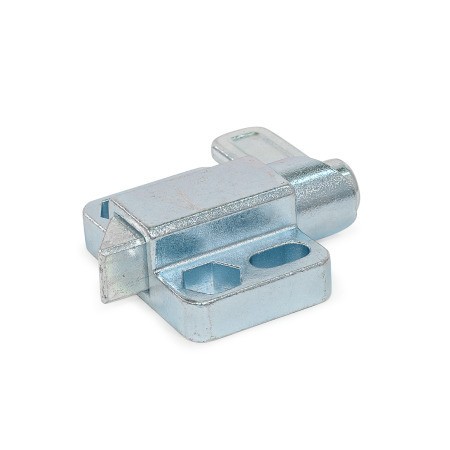

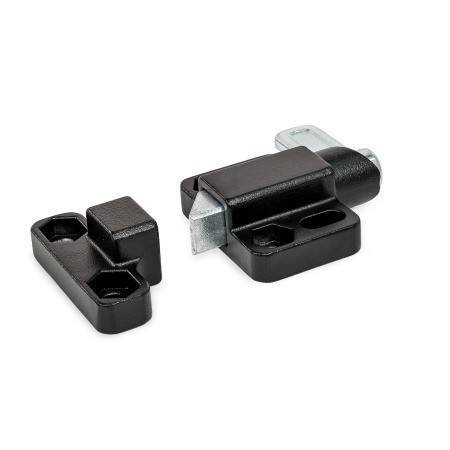

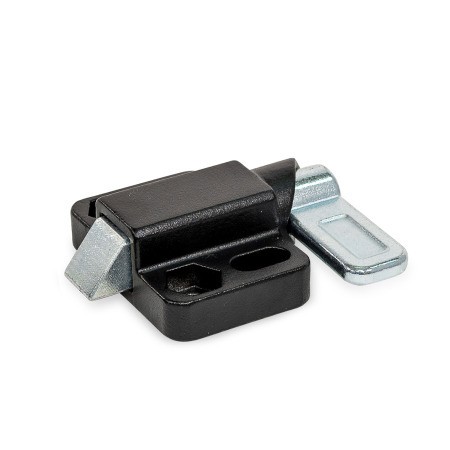

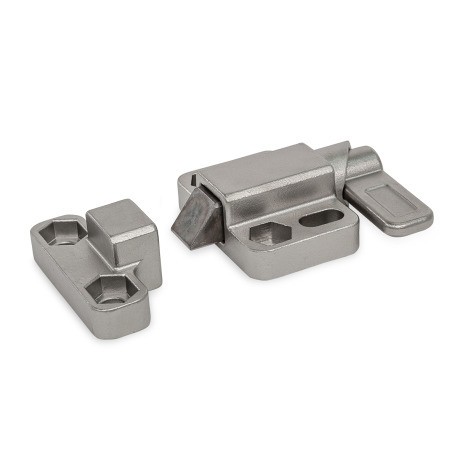

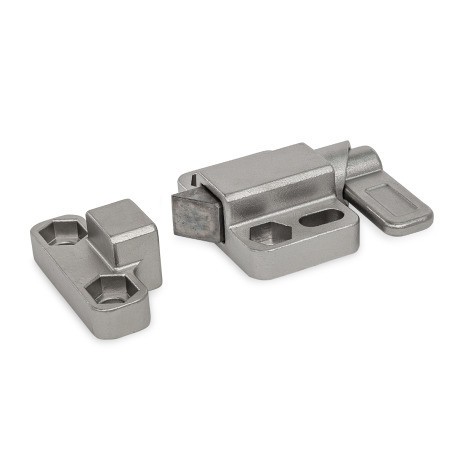

GN724.3 Spring Latches, Steel / Stainless Steel, with Chamfered Pin, with Flange for Surface Mounting

Spring latches GN 724.3 have a plunger pin with square cross-section, a latching surface on one side and a chamfer on the other. When moving in the direction of the chamfered pin, the plunger pin passes over grooves and edges, as the chamfered pin moves the plunger pin into the guide. The plunger pin automatically latches into place when moved toward the latching surface. The latching can be released by pulling the latch arm.

The notch at the upper end of the curve causes the latch to be held in place if the plunger pin needs to be kept temporarily from protruding.

The dimensional tolerances between the pin and the guide have been chosen to ensure functional reliability even in roughly dimensioned applications or in the event of soiling. The latching mechanism is pre-lubricated and can be re-lubricated if necessary.

For fastening, slotted or hex mounting holes allow the use of socket cap screws ISO 4762 and hex head screws or nuts according to DIN931 or DIN934.

Specification

• Guide / Catch
• Steel precision casting
  • Zinc plated, blue passivated ZB
  • Zinc plated and powder coated, black, RAL 9005, textured finish, SW
• Stainless steel precision casting AISI, CF-8, NI
• Latch arm - Steel precision casting
  • Zinc plated, blue passivated, for ZB / SW
• Plunger pin - Steel, hardened
  • Zinc plated, blue passivated for ZB / SW.
  • Stainless steel AISI 431, hardened, for NI
• Compression spring - Stainless steel AISI 316Ti
